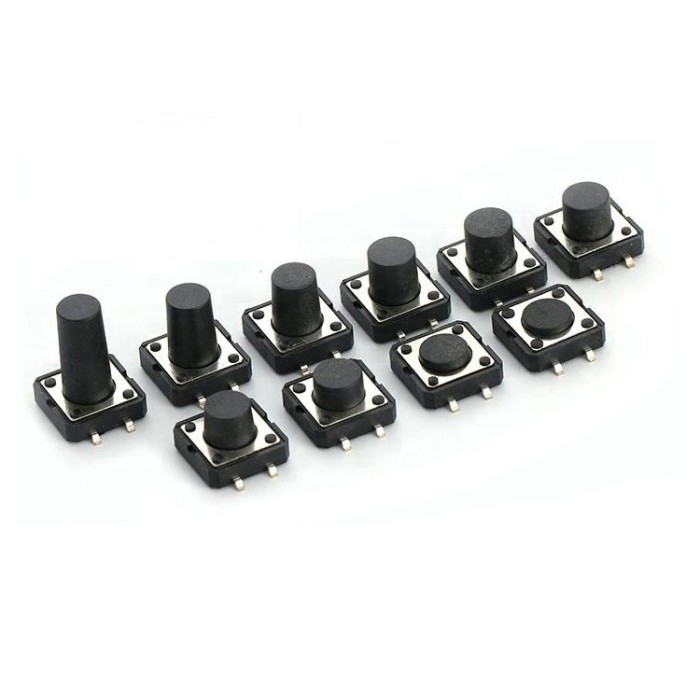

SMD Tactile Push Button - 6x6 mm

SMD Tactile Push Button - 6x6 mm is a compact tactile switch for electronic circuits and control applications. It provides temporary switching action only while pressed, then returns to its original position after release. The 6x6 mm size supports use on small boards and compact assemblies. Its 4-pin structure and SMD mounting help simplify installation. This push button switch is suitable for a range of electronic, household, office, and digital products.

Features of SMD Tactile Push Button - 6x6 mm, 12V DC, 50 mA

• Temporary push action
• Spring return mechanism
• 6x6 mm size
• 4-pin design
• SMD mounting

Specifications of SMD Tactile Push Button - 6x6 mm, 12V DC, 50 mA

• Size: 6x6 mm
• Height: Different heights
• Voltage: Up To 12 Volts DC
• Current: 50 mA
• Pins: 4
• Mounting: SMD
• Operation: Returns to original position after release

How to Use SMD Tactile Push Button - 6x6 mm, 12V DC, 50 mA

1. Mount the switch on a compatible board using the SMD format.
2. Connect the 4 pins as needed in the circuit.
3. Press the button to trigger a temporary circuit change.
4. Release the button to return it to the original position.

More Info

• Designed for control circuits.
• Commonly used in electronic and mechanical devices.
• Also used in kitchen appliances, home and commercial equipment, calculators, and button phones.
