UVM30A UV Sensor Module
$7.9500
In stock
SKU
SEN-11-041
Volume discounts:
- +25 4 % $7.6200
- +50 6 % $7.4600
- +100 8 % $7.2900
- +300 10 % $7.1300
- +500 12 % $6.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM393 Infrared Optocoupler Speed Sensor Module Previous

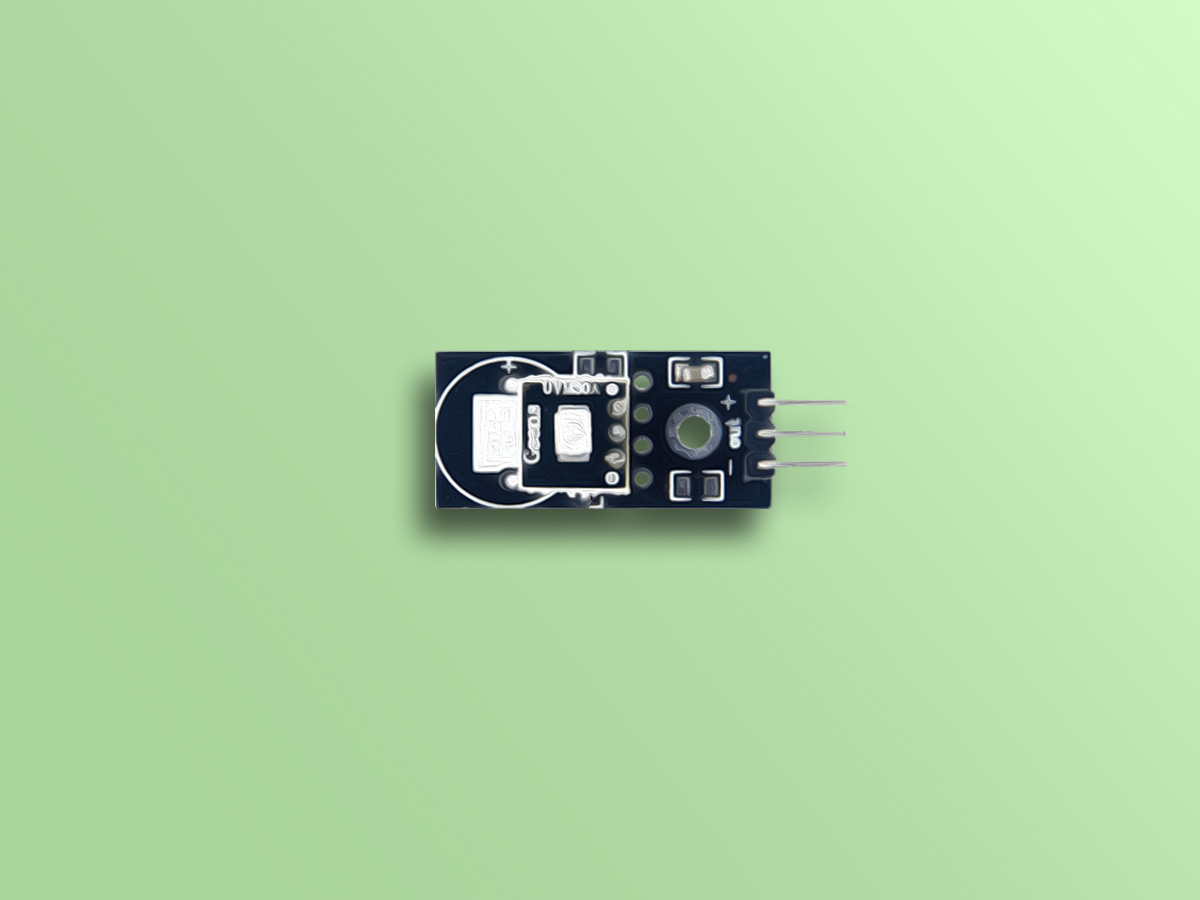

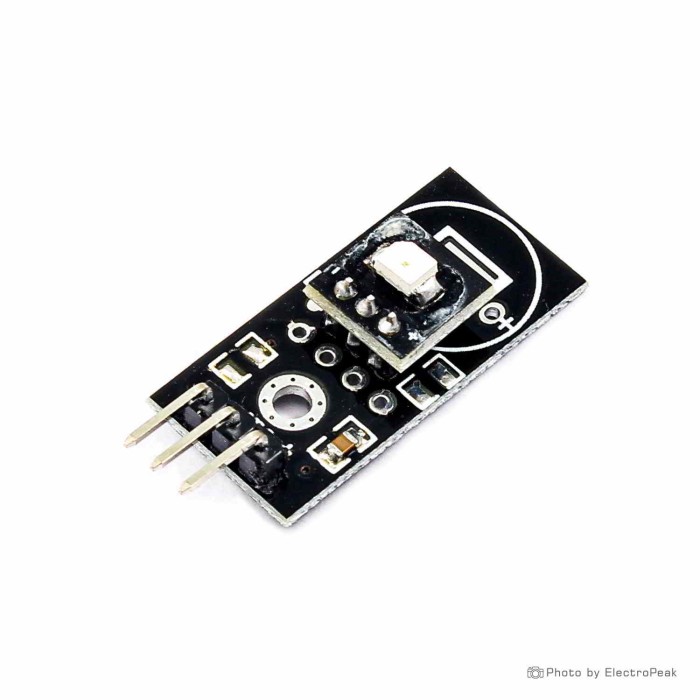

The UVM30A UV Sensor Module measures ultraviolet radiation intensity with an analog output that changes with UV light intensity. It is based on the UVM-30A sensor and is designed for UV detection tasks. The module detects wavelengths from 200 to 370nm. It supports Arduino boards and is easy to use. This UV sensor module is suitable for projects involving environmental UV monitoring, health safety, and UV index alerts.
Features of UVM30A UV Sensor Module
- Analog UV intensity output
- 200 to 370nm response range
- Arduino compatible
- Easy to use
Specifications of UVM30A UV Sensor Module
- Working voltage: 3 to 5V DC
- Operating current: 0.06mA (typical)
- Operating current: 0.1mA (max)
- Wavelength detection range: 200 to 370nm
- Output: Analog signal proportional to UV intensity
- Detection accuracy: 1 UV Index
- Dimensions: 28x12x10mm
How to Use UVM30A UV Sensor Module
- Connect the module to a 3 to 5V DC supply.
- Read the analog output signal.
- Use the signal to monitor UV intensity.
More Info
- Based on the UVM-30A sensor
- Used for UV detection projects
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3 to 5V DC |
| Operating Current (mA) | 0.06mA (typical), 0.1mA (max) |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 28x12x10mm |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Accuracy | 1 UV Index |
| Wavelength Range | 200–370nm |
| Chipset | UVM-30A |
| Qty | 1 |
| Sensor Type | Photodiode |
| Application | Environmental UV monitoring, Health safety, UV index alerts |
