Universal Fast Charger Module with 2 Output

The Universal Fast Charger Module 3516/3518 with 2 Output is a versatile and efficient charging solution designed to support multiple fast charging protocols, ensuring compatibility with a wide range of devices including Qualcomm QC4+/QC4.0/QC3.0, Huawei SCP/FCP, OPPO VOOC, Apple 2.4A, Samsung AFC, OnePlus DASH, and VIVO 9V2A dual engine flash charger. This module employs advanced technology to maximize efficiency and minimize heat generation, making it suitable for high-performance applications like mobile phones, tablets, and laptops.

Specifications of Universal Fast Charger Module 3516/3518 with 2 Output:

• Supported Fast Charging Protocols:
  • Qualcomm QC4+/QC4.0/QC3.0
  • Huawei SCP/FCP
  • OPPO VOOC (only 3518 models)
  • Apple 2.4A
  • Samsung AFC
  • OnePlus DASH (only 3518 models)
  • VIVO 9V2A
• Efficiency: High efficiency design with external MOS tube and double-wire + iron-silicon-aluminum magnetic ring
• Input Capacitors: Double parallel low resistance electrolytic capacitors and 6x 1206 chip ceramic capacitors
• Output: Type-C port for output charging; supports QC4+/QC4.0/PD3.0 protocols
• Output Voltage (PD Protocol): Up to 20V 3A when power supply voltage is higher than 21V
• Size: 50x19x12mm
• Applications: Mobile phones, tablets, laptops, car chargers, high efficiency DC-DC converters

Note:

• Ensure good ventilation and heat dissipation when charging notebooks.
• When both USB port and Type-C port are used simultaneously, dual port outputs at 5V.

This module combines compact size with robust performance, making it ideal for various fast charging applications where efficiency and compatibility are essential.

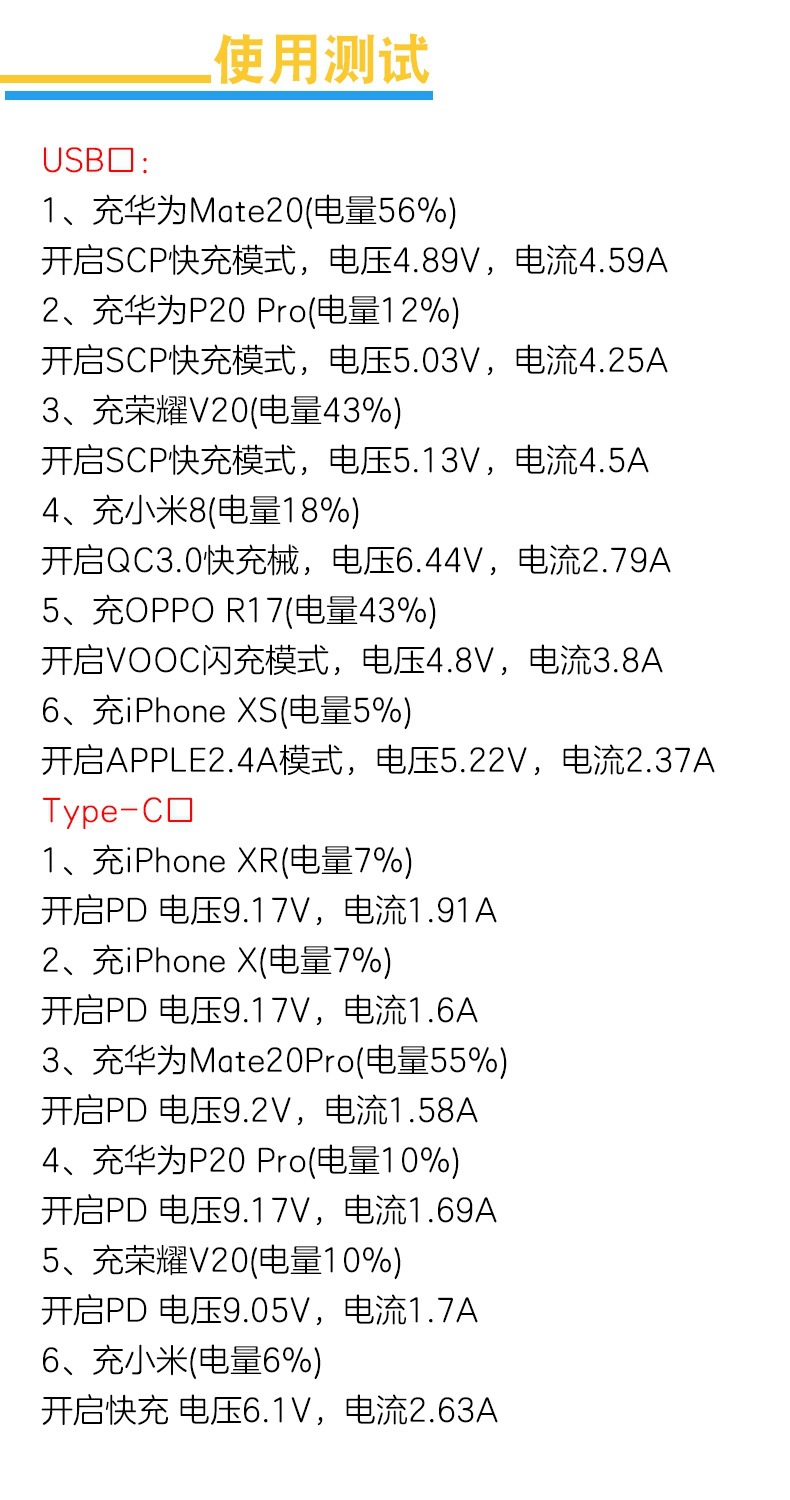

Datasheet of Universal Fast Charger Module 3516/3518 with 2 Output:

https://img.alicdn.com/imgextra/i3/389645101/O1CN01JlPKH51nYJF6udJps_!!389645101.jpg

https://img.alicdn.com/imgextra/i1/389645101/O1CN01paUuVy1nYJF69So1r_!!389645101.jpg

Precautions

This model is divided into two models: 3516 and 3518. The difference is that 3516 does not support OnePlus’ VOOC fast charging and OPPO’s DASH fast charging, while 3518 does.
