0.56" 70-500V AC LED Digital Voltmeter - Red
$0.7500
In stock
SKU
SEN-04-050
Volume discounts:
- +50 4 % $0.7200
- +100 7 % $0.7000
- +300 9 % $0.6800
- +500 12 % $0.6600
- +1000 13 % $0.6500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DC 0-100V 50A Current Voltage Digital Display Module Previous

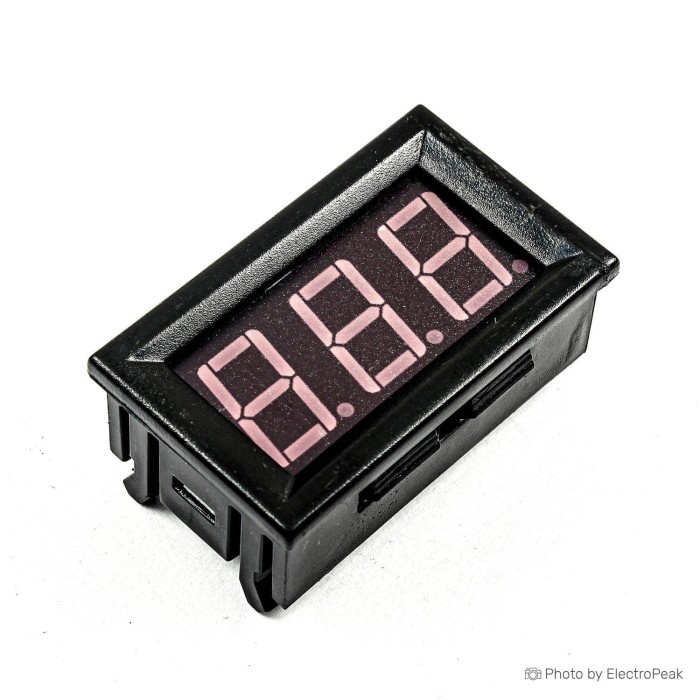

The 0.56" 70-500V AC LED Digital Voltmeter - Red is a compact panel meter for AC voltage measurement. It provides a clear three-digit LED readout for monitoring alternating current voltage in the 70V to 500V range. The red display is easy to read in different lighting conditions. This module uses a simple two-wire connection and does not require a separate power supply.
Features of 0.56" 70-500V AC LED Digital Voltmeter - Red
- AC voltage measurement
- 0.56-inch LED display
- Three-digit readout
- Red display color
- Two-wire connection
- Automatic decimal point position
- Compact panel mount design
- Low current consumption
Specifications of 0.56" 70-500V AC LED Digital Voltmeter - Red
- Measurement range: 70-500V AC
- Wires: Red and black
- Color: Red
- Size: 48x29x22 mm
- Hole size: 46x27 mm
- Thickness: 16 mm
- Board: 20 cm
- Net weight: 17 g
- Gross weight: 22 g
- Display: 0.56-inch three-digit digital LED display
- Power supply: None
- Current consumption: Less than 20 mA, typically 5-15 mA
- Operating temperature: -10 to +65 °C
How to Use 0.56" 70-500V AC LED Digital Voltmeter - Red
- Install the panel meter in the opening with the specified hole size.
- Connect the two wires to the AC voltage source you want to monitor.
- Check that the input voltage stays within the 70-500V AC range.
More Info
- Automatic decimal point shifting helps display different voltage levels clearly.
- This module is not moisture-proof, waterproof, shockproof, or oil-proof.
| Operating Voltage (V) | 70-500V AC |
|---|---|
| Operating Current (mA) | 5-15 mA (typically <20 mA) |
| Operating Temp (°C) | -10 to 65 °C |
| Dimensions (mm) | 48x29x22 mm |
| Mounting Type | Panel Mount |
| Voltage Range (V) | 70-500V AC |
| Weight (g) | 17 |
| Material | Plastic |
| Channels | 1-channel |
| Display Type | LED |
| Parameters | Voltage |
