TPA3116D2 Dual Channel Audio Amplifier Board - 2x120W
$4.6400
In stock
SKU
SEN-17-050
Volume discounts:
- +25 5 % $4.4300
- +100 7 % $4.3200
- +300 9 % $4.2200
- +500 11 % $4.1100
- +1000 14 % $4.0100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NE5532 Stereo Pre-Amplifier Tone Audio Board Previous

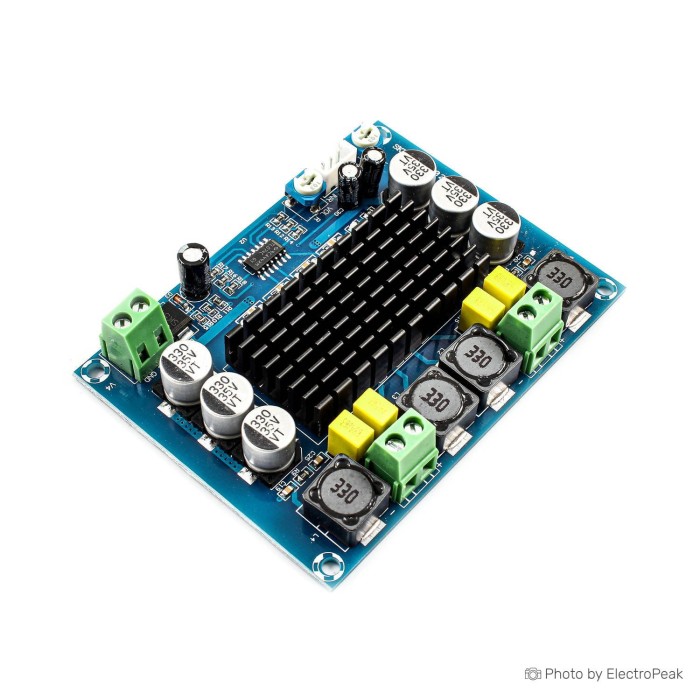

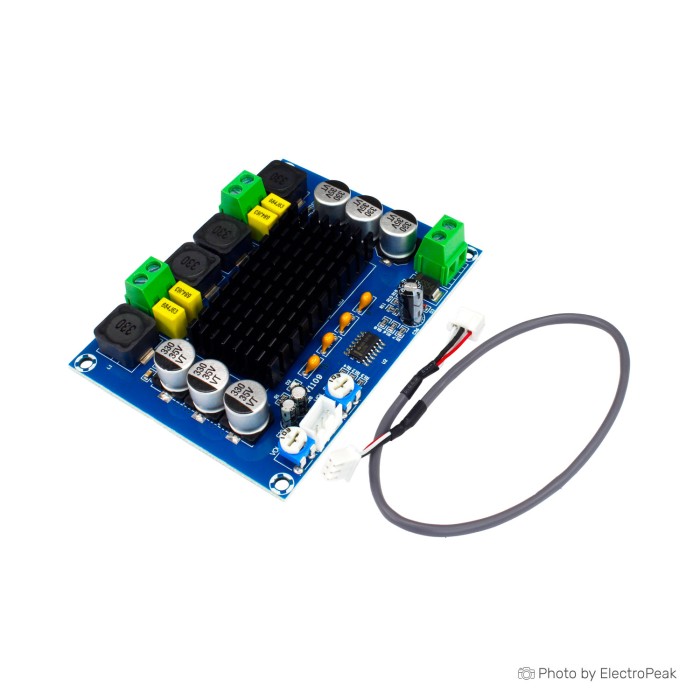

The XH-M543 TPA3116D2 Dual Channel Audio Amplifier Board is a digital power amplifier board for audio projects. It features the TPA3116D2 amplifier chip and a two-channel stereo design. The board supports separate adjustment for each channel using the onboard potentiometers. It is designed for DC12-26V operation and offers output power options based on supply voltage. The signal to noise ratio is 100dB.
Features of XH-M543 TPA3116D2 Dual Channel Audio Amplifier Board
- Two-channel stereo output
- TPA3116D2 amplifier chip
- Onboard channel adjustment
- DC12-26V supply range
- 100dB signal to noise ratio
Specifications of XH-M543 TPA3116D2 Dual Channel Audio Amplifier Board
- Model: XH-M543
- Amplifier chip: TPA3116D2
- Working voltage: DC12-26V
- Output power: DC12V, 2*50W
- Output power: DC24V, 2*120W
- Signal to noise ratio: 100db
- Dimensions: 92*68*16m
- Product Type: XH-M543
- Supply voltage: DC12-26V
- Amplifier chip: TPA3116D2
- Output power: maximum 2x120W
- Channel: two-channel
- Track number: dual stereo channel
- Product size: 92 x 68 x 16 (mm)
How to Use XH-M543 TPA3116D2 Dual Channel Audio Amplifier Board
- Connect the board to a DC12-26V power supply.
- Wire the audio input and speaker connections.
- Adjust each channel using the onboard potentiometers.
More Info
- Digital power amplifier board
- Dual stereo channel design
| Operating Voltage (V) | 12-26V |
|---|---|
| Dimensions (mm) | 92 x 68 x 16 mm |
| Mounting Type | Screw holes |
| Audio Function | Amplifier |
| Output Power | 2x120W |
| Speaker Impedance (Ω) | 4Ω, 8Ω |
| Bluetooth Ver. | No |
| Channels | 2-channel |
| Chipset | TPA3116D2 |
| Signal-to-Noise Ratio (SNR) | 100dB |
