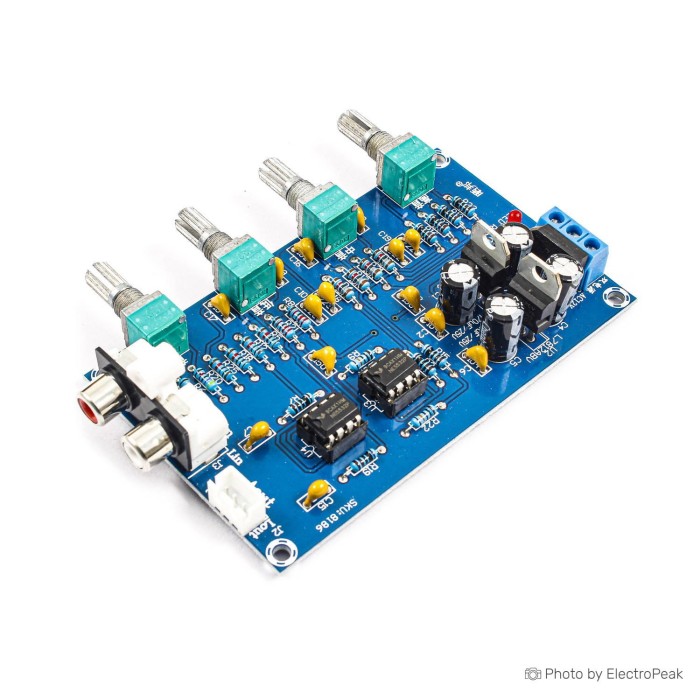

NE5532 Stereo Pre-Amplifier Tone Audio Board
$3.1300
In stock
SKU
SEN-17-049
Volume discounts:
- +25 5 % $2.9800
- +100 7 % $2.9000
- +300 10 % $2.8200
- +500 12 % $2.7500
- +1000 15 % $2.6700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
XH-M510 TDA7498 Dual Channel Power Amplifier Board - 2x100W Previous
NE5532 Stereo Pre-Amplifier Tone Audio Board is a dual-channel audio board for pre-amplification and tone control. It uses the NE5532 front chip for audio signal processing. The board includes four adjustment controls for treble, alto, bass, and volume. It is designed for professional sound equipment, control circuits, and telephone channel amplifier applications.
This NE5532 Stereo Pre-Amplifier Tone Audio Board provides RCA input, a 2.54-3P output interface, and stable audio adjustment. It supports dual power AC input and has a compact board size for electronic and audio projects.
Features of NE5532 Stereo Pre-Amplifier Tone Audio Board
- NE5532 front chip
- Dual-channel audio
- Four adjustment controls
- RCA input interface
- 2.54-3P output interface
- Stable audio output
Specifications of NE5532 Stereo Pre-Amplifier Tone Audio Board
- Working voltage: 12-24V AC Dual Power (12V-0-12V 24V-0-24V)
- Power consumption: 5W
- Front Chip: NE5532
- Input Interface: RCA
- Output Interface: 2.54-3P
- Number of Channel: Dual-channel Audio
- Adjustment Types: 4 channels (treble + alto + bass + volume)
- Board size: 100x60 mm
How to Use NE5532 Stereo Pre-Amplifier Tone Audio Board
- Connect the dual AC power input.
- Connect the audio source to the RCA input.
- Connect the output through the 2.54-3P interface.
- Adjust treble, alto, bass, and volume as needed.
More Info
- Suitable for high-quality and professional sound equipment.
- Suitable for control circuit and telephone channel amplifier use.
- Uses high-quality potentiometer contacts for stable audio output.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | Dual AC 12-24V |
| Dimensions (mm) | 100 x 60 mm |
| Mounting Type | Screw holes |
| Audio Function | Amplifier |
| Output Power | 5W |
| Input Types | RCA |
| Bluetooth Ver. | No |
| Output Type | Analog |
| Channels | 2-channel |
| Chipset | NE5532 |
