TP4056 Lithium Battery Charging Module-5V,1A
SAVE
As low as $0.1200
In stock
Only %1 left
SKU
BAT-03-014
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
AD620 Microvolt/Millivolt Voltage Amplifier Module Previous

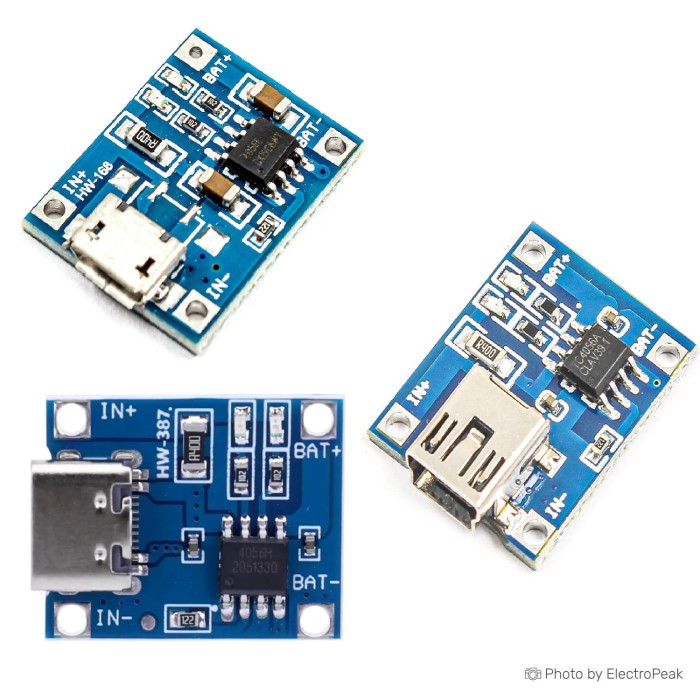

The TP4056 Lithium Battery Charging Module is a 1A lithium battery charger module for 3.7V lithium battery charging applications. It includes an onboard LED indication system for charging status and full charge status. The module supports a 4.5 to 5.5 volt input range and can be powered through USB or a 5V wall adapter. It is designed for controlled lithium battery charging with a linear charging type. This TP4056 battery charging module is compact and suitable for electronics and DIY charging projects.
Features of TP4056 Lithium Battery Charging Module - 5V, 1A
- 1A charging current
- LED charging indicators
- Linear charging type
- Micro USB charging support
- Mini USB optional support
- USB Type-C optional support
Specifications of TP4056 Lithium Battery Charging Module - 5V, 1A
- Dimensions: 25x19x10 mm
- Operating temperature: 85+ ~ 10-
- Input voltage: 4.5 to 5.5 volts
- Output current: 1 amp
- Output accuracy: 15%
- Charging type: linear one percent
- Communication interface: Mini USB, Micro USB, USB TypeC (Optional)
- Input voltage: 4.5-5.5
- Operating temperature (°C): -10 to 85
- Rated power (W): 4.2
How to Use TP4056 Lithium Battery Charging Module - 5V, 1A
- Connect a 5V supply to the input.
- Connect the lithium-ion battery to the battery terminals.
- Monitor the LED indicators during charging.
More Info
- The board does not include overcurrent protection.
- Reverse input connection does not affect the chip.
- Reverse output connection can damage the chip.
- Use an ammeter in series with the 5V input before powering the board.
- The charging wire should not be too thin or too long.
| Chipset | TP4056 |
|---|---|
| Function | Battery Charger |
| Charging Voltage (Pack) | 4.2V |
| Supported Battery Type | Lithium |
| Overcharge Detection Voltage (per Cell) | 4.2V |
| Cell Count | 1 |
| Input Voltage (V) | 4.5 to 5.5 V |
| Output Voltage (V) | 4.2V |
| Output Current (A) | 1A |
| Max Charging Current | 1A |
| Fast Charge Protocol | No |
| USB Connector | USB, Micro USB, Lightning, USB Type-C |
| Protection | Overcurrent protection |
| Indicator LEDs | Green,Red |
| Dimensions (mm) | 25x19x10 mm |
| Mounting Type | Soldering |
| Operating Temp (°C) | -10 to 85 |
