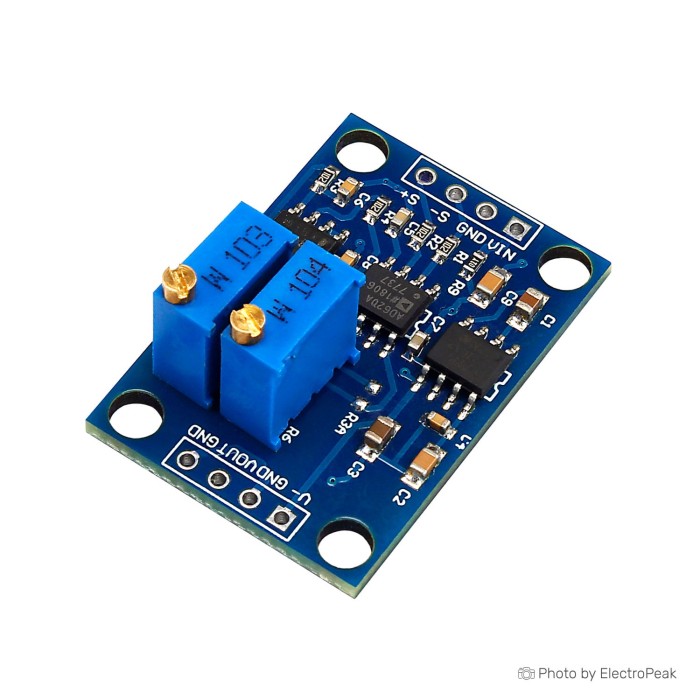

AD620 Microvolt/Millivolt Voltage Amplifier Module
$1.9500
In stock
SKU
BAT-02-153
Volume discounts:
- +50 4 % $1.8800
- +100 6 % $1.8400
- +300 7 % $1.8100
- +500 9 % $1.7700
- +1000 11 % $1.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MH-CD42 5V2A Charging and Discharging Integrated Module Previous
The AD620 Microvolt/Millivolt Voltage Amplifier Module is a high-precision signal amplifier board based on the AD620 instrumentation amplifier IC. It is designed for microvolt and millivolt signal amplification and supports both AC and DC signals. The module accepts a DC 3~12V input voltage and provides adjustable amplification from 1.5 to 1000 times. It also includes zero adjustment for improved accuracy and reduced zero drift. A 7660A chip is used to provide negative voltage output for dual power loads.
Features of AD620 Microvolt/Millivolt Voltage Amplifier Module
- High-precision signal amplification
- Supports microvolt and millivolt signals
- Adjustable gain up to 1000 times
- Zero adjustment support
- Negative voltage output
- Supports AC and DC signals
Specifications of AD620 Microvolt/Millivolt Voltage Amplifier Module
- Model: AD620 Signal Amplifier Module
- Input Voltage: DC 3~12V
- Amplification: Adjustable from 1.5 to 1000 times
- Maximum Voltage Output: ±10V
- Technology: Utilizes AD620 IC
- Zero Adjustment: Improves accuracy and prevents zero drift
- Negative Output: Uses 7660A chip to provide negative voltage for dual power loads
- Application: Suitable for amplifying AC and DC signals
- Dimensions: 32x22mm
How to Use AD620 Microvolt/Millivolt Voltage Amplifier Module
- Connect the module to a DC 3~12V input supply.
- Apply the AC or DC signal to be amplified.
- Adjust the gain and zero setting as needed.
More Info
- Based on the AD620 instrumentation amplifier IC.
- Designed for high amplification precision and good linearity.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3-12V |
| Dimensions (mm) | 32x22 |
| Mounting Type | Screw holes |
| Output Type | Analog Voltage |
| Channels | 1-channel |
| Chipset | AD620 |
| Voltage Range | 3-12V |
