TowerPro MG90S 9G Metal Gear Servo
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
MTR-06-003
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TowerPro MG995 55G Metal Gear Servo Previous

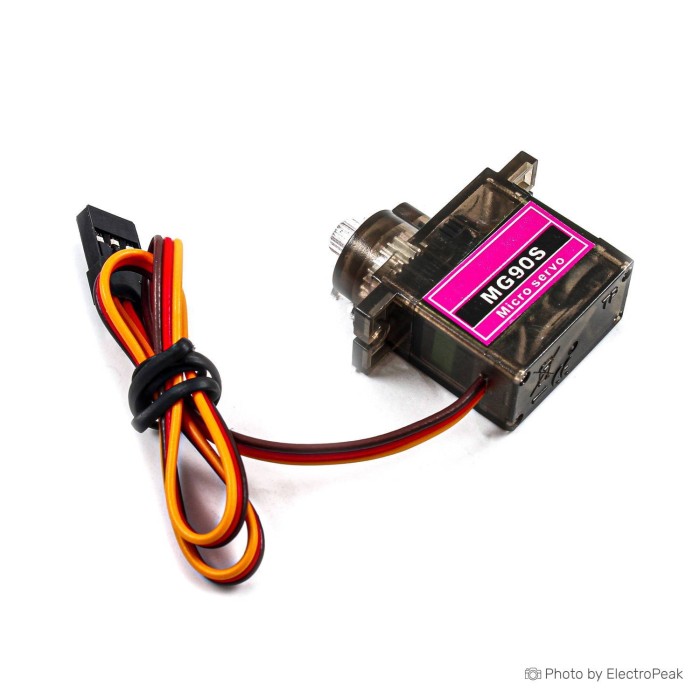

TowerPro MG90S 9G Metal Gear Servo is a compact servo motor for angular position control applications. It features a metal and plastic gear option and operates across a 4.8V to 6V range. The servo can rotate continuously when turned off and does not have a lock in the off state. It is suitable for model follower 450 and 3D flight use cases. The TowerPro MG90S servo combines a small form factor with defined speed, torque, and PWM control parameters.
Features of TowerPro MG90S 9G Metal Gear Servo
- Metal and plastic gear option
- Continuous rotation when off
- No lock in the off state
- Compact 9G form factor
- Angular position control
Specifications of TowerPro MG90S 9G Metal Gear Servo
- Weight: 13.4g
- Dimensions: 22.5 * 12 * 22.5 mm
- Dimensions: 22.8mm x 12.2mm x 28.5mm
- Stall Torque (4.8V): 1.8 kg/cm
- Stall Torque (6V): 2.2 kg/cm
- Operating Speed (4.8V no load): 0.1 seconds per 60 degrees
- Operating Speed (6V no load): 0.08 seconds per 60 degrees
- Operating Voltage: 4.8V - 6V
- Dead Band Width: 5 microseconds
- Operating Temperature: 0-55 degrees
- Gear Material: Metal and plastic (optional)
- PWM Pulse Frequency: 50Hz
How to Use TowerPro MG90S 9G Metal Gear Servo
- Connect the servo to a compatible control setup.
- Apply the specified operating voltage.
- Use PWM control at the stated frequency.
More Info
- Product type: servo motor
- Designed for motion control applications
| Weight (g) | 13.4 |
|---|
