TM7711 24-bit Pressure Sensor Module
$0.9500
In stock
SKU
SEN-08-020
Volume discounts:
- +50 4 % $0.9100
- +100 5 % $0.9000
- +300 7 % $0.8800
- +500 9 % $0.8600
- +1000 12 % $0.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-BME280 Temperature, Humidity and Atmospheric Pressure Sensor Module Previous

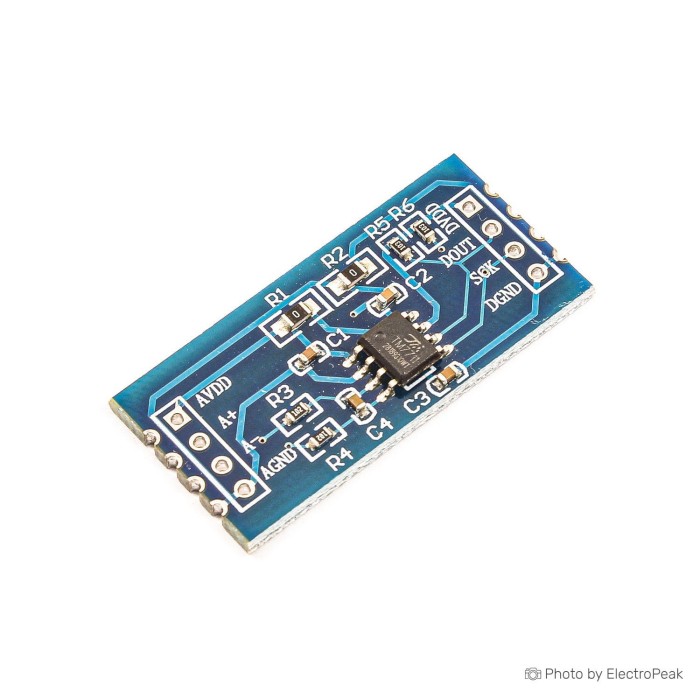

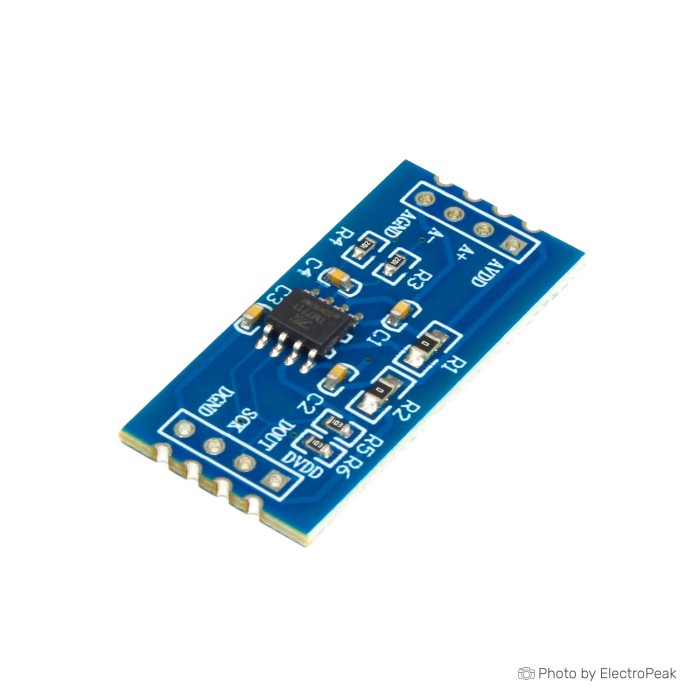

TM7711 24-Bit Pressure Sensor Module is a 24-bit ADC module for electronic weighing sensors and bridge sensor applications. It is designed for weigh scales and industrial control systems that require high-precision measurement. The module uses the TM7711 chip with a single-channel analog-to-digital converter. It supports pressure and weighing sensor input through a bridge sensor interface. The internal amplifier helps strengthen the input signal for measurement. It also includes a built-in power-down mode to reduce standby power consumption. This module is suitable for projects that need low power consumption and stable serial communication.
Features of TM7711 24-Bit Pressure Sensor Module
- 24-bit ADC resolution
- Single-channel analog input
- Internal low-noise amplifier
- Gain 128
- Two-wire I2C serial communication
- Built-in clock
- Power-down mode
Specifications of TM7711 24-Bit Pressure Sensor Module
- Product Type: Pressure Sensor Module
- Chip: TM7711
- ADC: Single-channel
- ADC Resolution: 24-bit
- Amplifier: Internal low-noise amplifier
- Amplifier Gain: 128
- Communication: Two-wire I2C
- Supply Voltage: 2.6 to 5.6 V DC
- Operating Temperature: -40 to +85 °C
- Internal Clock: No external source required
- Pin Pitch: 2.54 mm
How to Use TM7711 24-Bit Pressure Sensor Module
- Connect the module to a compatible power supply within the specified voltage range.
- Wire the bridge sensor or load cell input to the module.
- Use the two-wire I2C interface for data communication.
- Read the digitized output for weight or pressure measurement.
More Info
- Suitable for weigh scales and industrial control applications.
- Designed for bridge sensor input, including pressure and weighing sensors.
- Includes high integration and strong anti-interference characteristics.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.6 - 5.6V DC |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT (Through Hole) |
| IP Rating | None |
| Output Type | Digital |
| Resolution | 24-bit |
| Environmental Parameter | Pressure |
| Chipset | TM7711 |
| Relay Output | No |
| Protocols | I2C |
