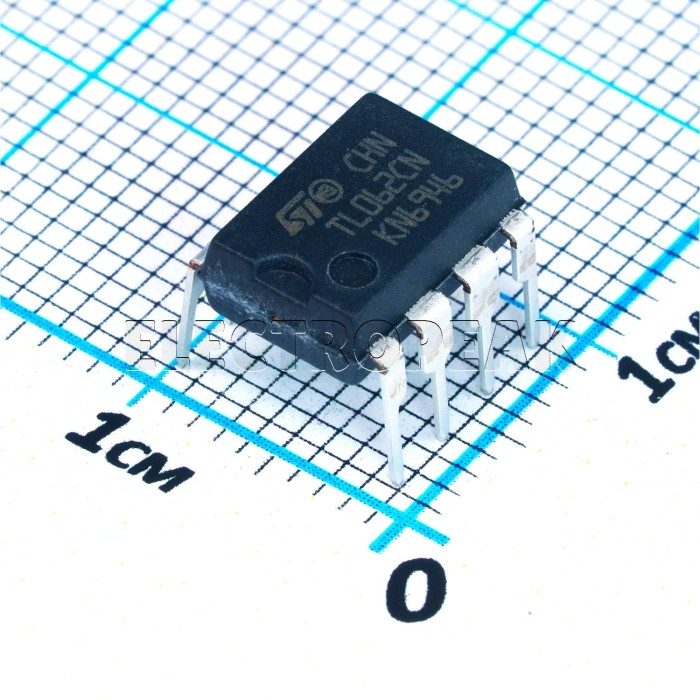

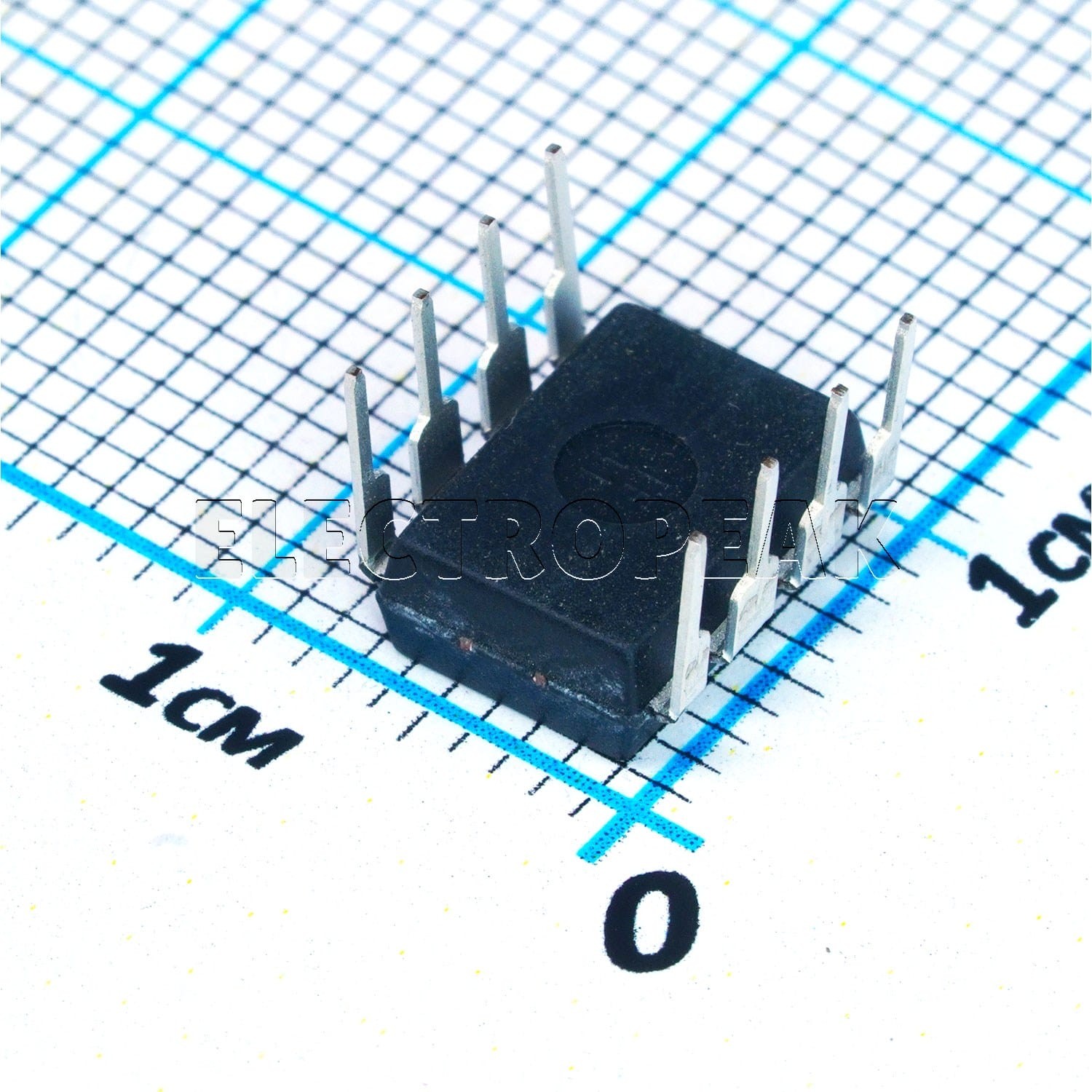

The TL062CP is a dual operational amplifier with JFET inputs, housed in an 8-pin DIP package. It operates with a single supply voltage from 5V to 30V or a dual supply of ±2.5V to ±15V. The IC features a bandwidth of 1 MHz and a slew rate of 3.5 V/µs. These characteristics make it suitable for general applications such as signal amplification, filtering, and analog circuits.
Specifications of TL062CP Operational Amplifier IC DIP-8
- Operating Voltage: 5V to 30V (single supply) or ±2.5V to ±15V (dual supply)
- Operating Current: Maximum 200 µA
- Maximum Input Offset Voltage: 15 mV
- Maximum Power Dissipation: 7.5 mW
- Input Bias Current: 200 nA
- Bandwidth (GBW): 1 MHz
- Slew Rate: 3.5 V/µs
- Common-Mode Rejection Ratio (CMRR): 86 dB
- Dimensions: LxWxHmm
Datasheet of TL062CP Operational Amplifier IC DIP-8
For detailed technical specifications and application guidelines, please refer to the datasheet.
| Package | DIP-8 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Gain Bandwidth Product fT | 1 MHz |
| Mounting Type | Through Hole |
| Components - Type | Operational Amplifiers - Op Amps |
