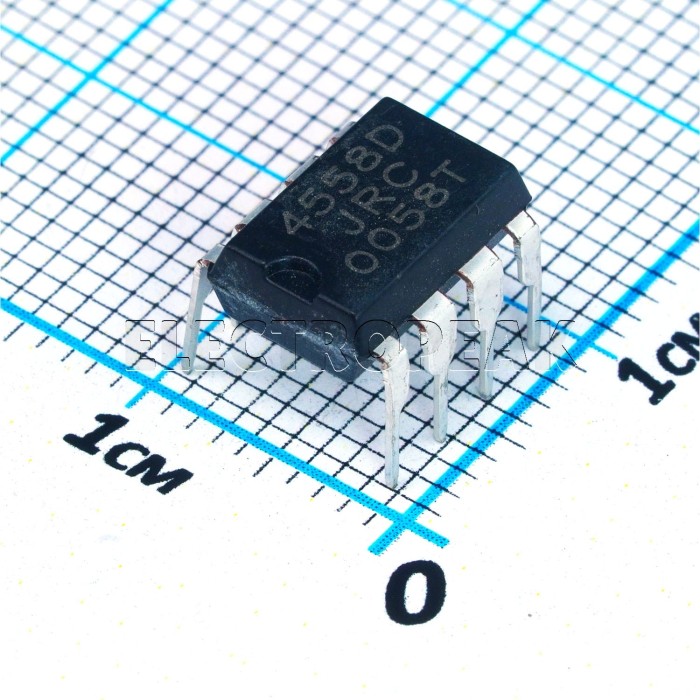

RC4558P, 3MHz Op Amp, DIP-8
$0.1200
In stock
SKU
S1-0023
Volume discounts:
- +500 8 % $0.1100
RC4558P, 3MHz Op Amp, DIP-8 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TL062CN, 1MHz Op Amp, DIP-8 Previous
The RC4558P is a dual general-purpose operational amplifier housed in an 8-pin DIP package. It operates with a single supply voltage from 5V to 30V or a dual supply of ±2.5V to ±15V. The IC features a bandwidth of 3 MHz and a slew rate of 0.3 V/µs. These characteristics make it suitable for general applications such as signal amplification, filtering, and analog circuits.
Specifications of RC4558P Operational Amplifier IC DIP-8
- Operating Voltage: 5V to 30V (single supply) or ±2.5V to ±15V (dual supply)
- Operating Current: Maximum 3 mA
- Bandwidth (GBW): 3 MHz
- Slew Rate: 0.3 V/µs
- Dimensions: LxWxHmm
Datasheet of RC4558P Operational Amplifier IC DIP-8
For detailed technical specifications and application guidelines, please refer to the datasheet available at Texas Instruments.
| Package | DIP-8 |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Gain Bandwidth Product fT | 3 MHz |
| Mounting Type | Through Hole |
| Components - Type | Operational Amplifiers - Op Amps |
