TEMT6000 Ambient Light Sensor Module
$0.8000
In stock
SKU
SEN-11-052
Volume discounts:
- +50 4 % $0.7700
- +100 6 % $0.7500
- +300 8 % $0.7400
- +500 10 % $0.7200
- +1000 11 % $0.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ML8511 UV Detection Sensor Module Previous

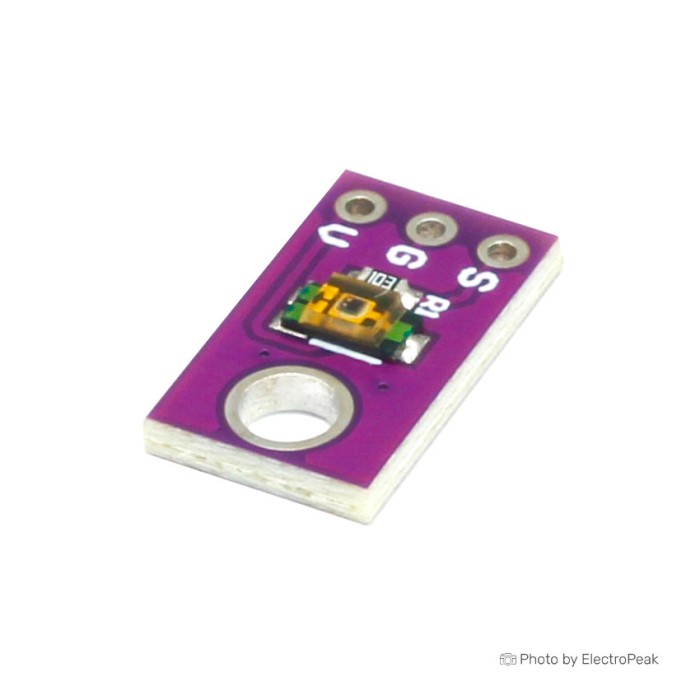

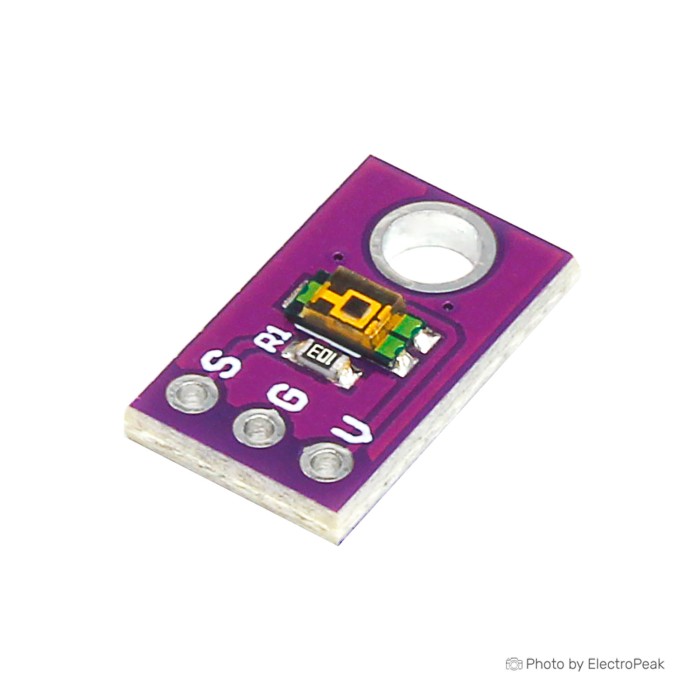

TEMT6000 Ambient Light Sensor Module is an analog ambient light sensor module for measuring surrounding light intensity. It has a response that closely matches human vision and reacts to small changes in light across a wide range. The module is sensitive to visible light and does not respond appropriately to infrared or ultraviolet light. It provides an analog voltage signal for light detection in electronics and robotics projects. This TEMT6000 Ambient Light Sensor Module is suitable for brightness sensing and related light-level measurement tasks.
Features of TEMT6000 Ambient Light Sensor Module - 3.3V To 5V
- Analog output
- Human-eye-like response
- Visible-light sensitivity
- Infrared and UV non-response
Specifications of TEMT6000 Ambient Light Sensor Module - 3.3V To 5V
- Chip: TEMT6000
- Input Voltage: 3.3V ~ 5V
- Output Type: Analog
- Collector-Emitter Voltage: 6V
- Emitter-Collector Voltage: 1.5V
- Maximum Current: 20mA
- Wavelength: 570nm
- Detection Angle: 60º
- Pin Number: 3 Pins
- Operating Temperature: -40°C ~ +85°C
- Storage Temperature: -40°C ~ +85°C
- Size: 14mm x 8mm
How to Use TEMT6000 Ambient Light Sensor Module - 3.3V To 5V
- Connect the module to a compatible circuit.
- Read the analog output for light intensity measurement.
- Set a voltage threshold if a trigger action is needed.
More Info
- The sensor does not respond to UV and IR lights appropriately.
- The module uses a special ambient light detector.
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3V, 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 8x5x2 mm |
| Output Type | Analog Voltage |
| Wavelength Range | 570 nm |
| Field of view angle (degrees) | 120° |
| Chipset | TEMT6000 |
| Sensor Type | Light control |
| Application | Smart lighting systems, Ambient light sensing in IoT projects, Display brightness adjustment, Home automation systems, Robotics and DIY electronics projects |
