5mm 4Pin Common Cathode RGB LED
$0.0180
In stock
SKU
ELC-02-001
Volume discounts:
- +500 6 % $0.0170
- +5000 11 % $0.0160
- +20000 17 % $0.0150
5mm 4Pin Common Cathode RGB LED is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

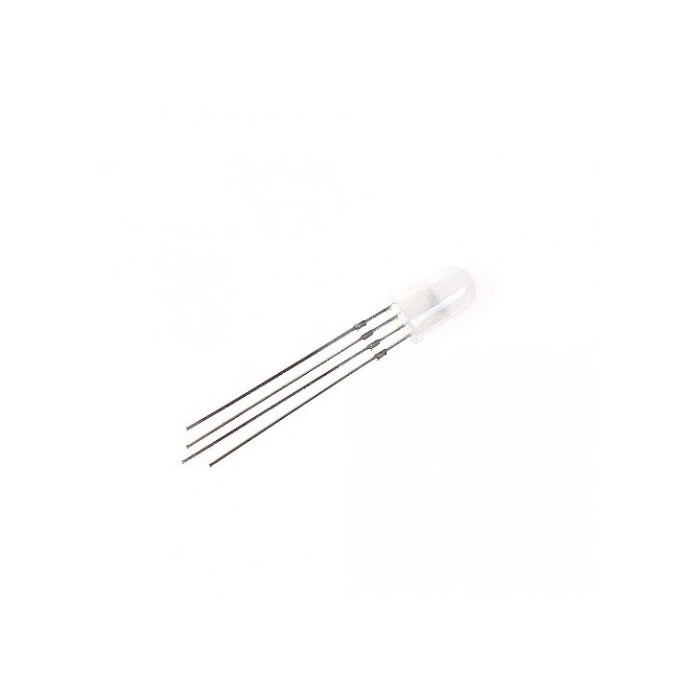

5mm 4Pin Common Cathode RGB LED is a 5 mm round-head LED package with a clear lens and three main colors: red, green, and blue. It uses four pins, including one common cathode pin and three color pins. The LED supports color mixing by adjusting each internal LED separately. It is a dip LED in a compact round form factor. The package is designed for low power use and uniform light emission.
Features of 5mm 4Pin Common Cathode RGB LED
- Common cathode design
- Three-color RGB output
- 5 mm round-head package
- Clear lens
- Low power consumption
- Uniform light emission
Specifications of 5mm 4Pin Common Cathode RGB LED
- Size: 5 mm
- Light Color: RGB Red/Blue/Green
- LED type: Round dip led
- Voltage: 3 V
- Current: 20 mA
- Lens Color: Clear
- Red Wavelength: 626 nm
- Red Luminous Intensity: 1800 ~ 3000 mcd
- Red Forward Voltage: 2.0 ~ 2.8 V
- Green Wavelength: 525 nm
- Green Luminous Intensity: 3500 ~ 6000 mcd
- Green Forward Voltage: 3.5 ~ 4.0 V
- Blue Wavelength: 470 nm
- Blue Luminous Intensity: 1300 ~ 2500 mcd
- Blue Forward Voltage: 3.5 ~ 4.2 V
- Pin 1: Red
- Pin 2: Common Cathode
- Pin 3: Blue
- Pin 4: Green
How to Use 5mm 4Pin Common Cathode RGB LED
- Connect the common cathode pin.
- Connect the red, green, and blue pins as needed.
- Adjust each color channel to create mixed colors.
More Info
- Suitable for color-mixing LED applications.
- Uses a four-pin common cathode layout.
