GY-213V-HTU21D Temperature Humidity Sensor Module
$1.5100
In stock
SKU
SEN-10-006
Volume discounts:
- +50 5 % $1.4400
- +100 7 % $1.4100
- +300 9 % $1.3700
- +500 11 % $1.3400
- +1000 14 % $1.3000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
OTP-N538U Thermopile Non-Contact Infrared Temperature Sensor Previous

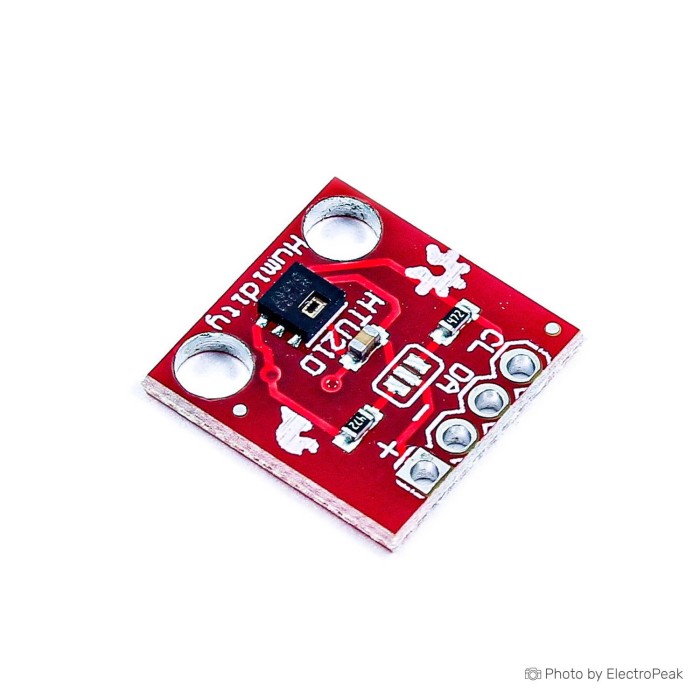

GY-213V-HTU21D Temperature Humidity Sensor Module is a digital humidity and temperature sensor module for environmental sensing and data logging. It supports I2C communication and uses only four pins for basic operation. The module is suitable for projects that require relative humidity readings and temperature readings through a simple digital interface. It is designed for low-cost and easy use in electronics and robotics applications. The board includes built-in 4.7k pull-up resistors for I2C communications. Full drops of water can damage the sensor.
Features of GY-213V-HTU21D Temperature Humidity Sensor Module - 3V, I2C
- Digital humidity sensing
- Digital temperature sensing
- I2C communication
- Four-pin connection
- Built-in 4.7k pull-up resistors
Specifications of GY-213V-HTU21D Temperature Humidity Sensor Module - 3V, I2C
- Working voltage: 3V
- Input voltage: 1.5V ~ 3.6V
- Sleep current: 0.02 µA
- Measurement current: 450 µA
- Interface: I2C
- Resolution: 0.04 (12 bit) / 0.7 (8 bit)
- Humidity hysteresis: ±1 %RH
- Output type: Digital
- Humidity measuring range: 0 ~ 100% RH
- Humidity accuracy: ±2% RH (at 10% RH to 95% RH)
- Temperature measurement range: -40„ ~ 125„
- Temperature accuracy: ±0.3 °C (at 25°C)
- Maximum power consumption: 2.7uW
- Pin number: 4 Pin
How to Use GY-213V-HTU21D Temperature Humidity Sensor Module - 3V, I2C
- Connect VCC and GND to the power supply.
- Connect the two data lines for I2C communication.
- Read humidity and temperature data from the digital output.
More Info
- The HTU21D sensor is fully calibrated during manufacture.
- It includes selectable resolution, low battery detect, and checksum capability.
- Full drops of water can damage the sensor.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Current (mA) | 450 µA |
| Operating Temp (°C) | -40 to 85 |
| Mounting Type | THT |
| IP Rating | None |
| Output Type | I2C |
| Accuracy | ±2% RH, ±0.3°C |
| Resolution | 0.04 (12 bit) / 0.7 (8 bit) |
| Measurement Range | 0 to 100% RH, -40 to +125°C |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Capacitive |
| Chipset | HTU21D |
| Humidity Range | 0-100% RH |
| Relay Output | No |
| Humidity Accuracy | ±1 %RH |
| Protocols | I2C |
| Temp Accuracy | ±0.3°C |
