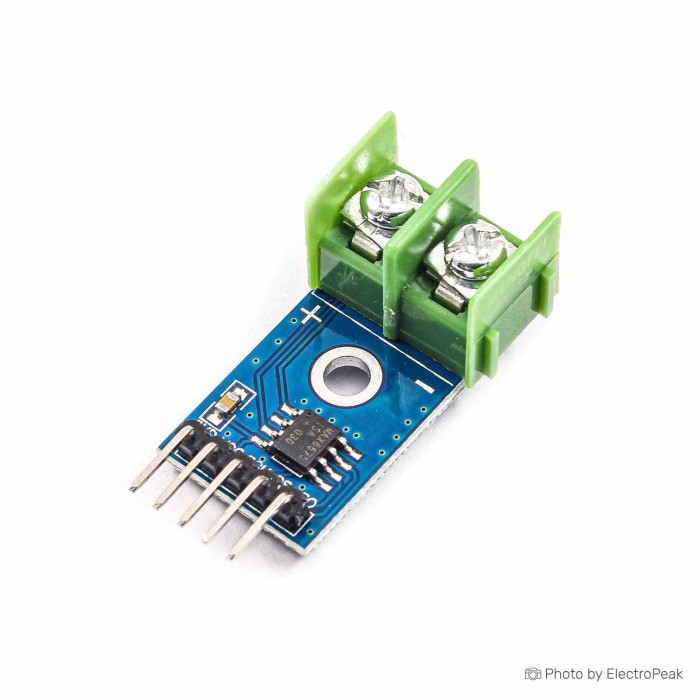

MAX6675 K-Type Thermocouple Sensor Module
$2.6300
In stock
SKU
SEN-10-007
Volume discounts:
- +25 4 % $2.5200
- +100 6 % $2.4600
- +300 9 % $2.4000
- +500 11 % $2.3500
- +1000 13 % $2.2900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-213V-HTU21D Temperature Humidity Sensor Module Previous
The MAX6675 K-Type Thermocouple Sensor Module is a digital temperature sensor module for measuring temperature with K-type thermocouples. It provides a SPI digital output and is designed for microcontroller-based temperature reading. The module uses the MAX6675 chip and outputs temperature data in 12-bit form. It includes cold-junction compensation for temperature measurement support. The module is suitable for Arduino and other microcontroller connections through a simple serial interface.
Features of MAX6675 K-Type Thermocouple Sensor Module
- High-accuracy temperature measurement
- SPI digital output
- 12-bit temperature conversion
- Cold-junction compensation
- K-type thermocouple support
- Thermocouple break detection
- High-impedance differential inputs
- Simple serial temperature reading
Specifications of MAX6675 K-Type Thermocouple Sensor Module
- Operating voltage: 3.3~5.5VDC
- Temperature range: 0 to +1024°C
- Cold junction compensation range: -20 to +80°C
- Resolution: 0.25°C
- Temperature signal conversion: 12-bit digital
- Interface: SPI-compatible
- Input support: K-type thermocouple
- Embedded thermocouple break detection circuitry
- 2000V of ESD signal
How to Use MAX6675 K-Type Thermocouple Sensor Module
- Connect the module to a microcontroller using the SPI interface.
- Attach the K-type thermocouple probe to the module input.
- Read the digital temperature data from the serial output.
More Info
- Read-only digital output format
- Compatible with microcontroller temperature monitoring projects
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 3.0 to 5.5 V |
| Operating Current (mA) | 1.5 mA (max) |
| Operating Temp (°C) | -20 to +80 °C |
| IP Rating | None |
| Output Type | SPI |
| Accuracy | 0.25 °C |
| Resolution | 12-bit |
| Measurement Range | 0 to +1024 °C |
| Environmental Parameter | Temperature |
| Probe Type | K-Type |
| Chipset | MAX6675 |
| Relay Output | No |
| Protocols | SPI |
| Temp Accuracy | 0.25 °C |
