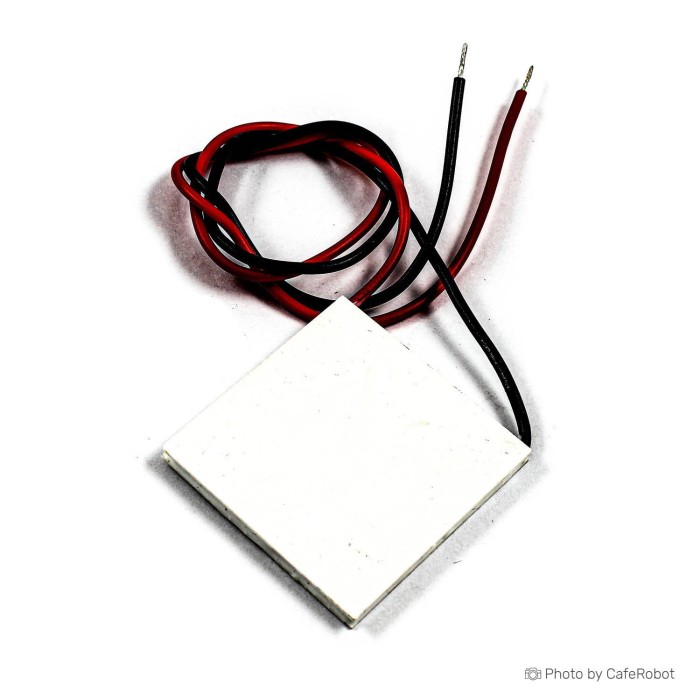

TEC1-16103 Thermoelectric Cooler Peltier - 3A

TEC1-16103 Thermoelectric Cooler Peltier is a cooling element for electronics and thermal management applications. It is designed for use where heat transfer and cooling are required in compact systems. This TEC1-16103 Thermoelectric Cooler Peltier includes the key electrical and size specifications needed for selection. Use it with proper heat dissipation components for operation. It is suitable for projects that need a thermoelectric cooling module.

Features of TEC1-16103 Thermoelectric Cooler Peltier - 3A

• Thermoelectric cooling element
• 12V to 19V operating range
• 3A current rating
• Compact 45x45x4.2 mm size
• 2.2 ohm resistance

Specifications of TEC1-16103 Thermoelectric Cooler Peltier - 3A

• Model: TEC1-16103
• Dimensions: 45x45x4.2 mm
• Operating Voltage: 12 to 19 V
• Current: Slightly more than 3 A
• Resistance: 2.2 ohm

How to Use TEC1-16103 Thermoelectric Cooler Peltier - 3A

1. Connect the TEC1-16103 Thermoelectric Cooler Peltier to a suitable power source within the operating voltage range.
2. Install proper heat dissipation components for safe operation.
3. Ensure the module is used with suitable cooling support during operation.

More Info

• Thermal performance depends on proper heat sink and fan installation.
• Additional heat transfer materials can improve overall efficiency.
