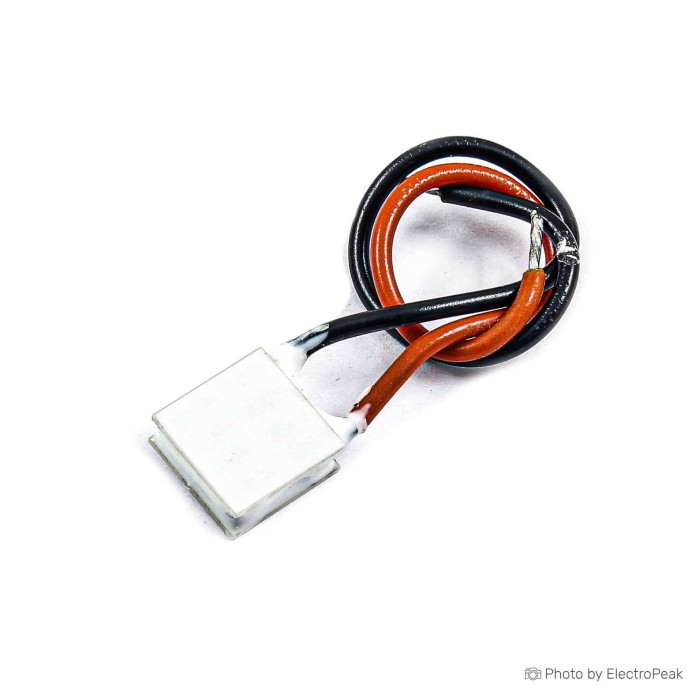

TEC1-00703Thermoelectric Cooler Peltier

TEC1-00703 Thermoelectric Cooler Peltier is a compact thermoelectric cooling module for electronic cooling applications. It uses the Peltier effect to create a temperature difference between two sides when voltage and current are applied. The module is lightweight, noiseless, and designed without mechanical parts. It is supplied in white and uses plastic and ceramic materials. The TEC1-00703 Thermoelectric Cooler Peltier is suitable where thermoelectric cooling is needed.

Features of TEC1-00703 Thermoelectric Cooler Peltier

• Thermoelectric cooling module
• No coolant required
• Noiseless operation
• Lightweight design
• No mechanical parts
• Cooling or heating by current direction

Specifications of TEC1-00703 Thermoelectric Cooler Peltier

• Model: TEC1-00703
• Maximum voltage: 0.82 V DC
• Maximum Qmax: 1.6 W
• Maximum current: 3.3 A
• Resistance: 1.3 ohm
• Minimum ΔTmax: 66 degrees Celsius
• Cable length: 29 cm
• Material: Plastic and ceramic
• Color: White
• Size: 10x10x4.4 mm
• Weight: 40 g

How to Use TEC1-00703 Thermoelectric Cooler Peltier

1. Apply voltage and current to the module terminals.
2. Use the hot side and cold side with suitable external parts.
3. Ensure the module is mounted for heat transfer as needed.

More Info

• Large heatsink is needed on the hot side.
• High-speed fan is needed for heatsink cooling.
• Aluminum interface part is needed on the cold side.
• Quality silicone paste helps improve heat transfer.
