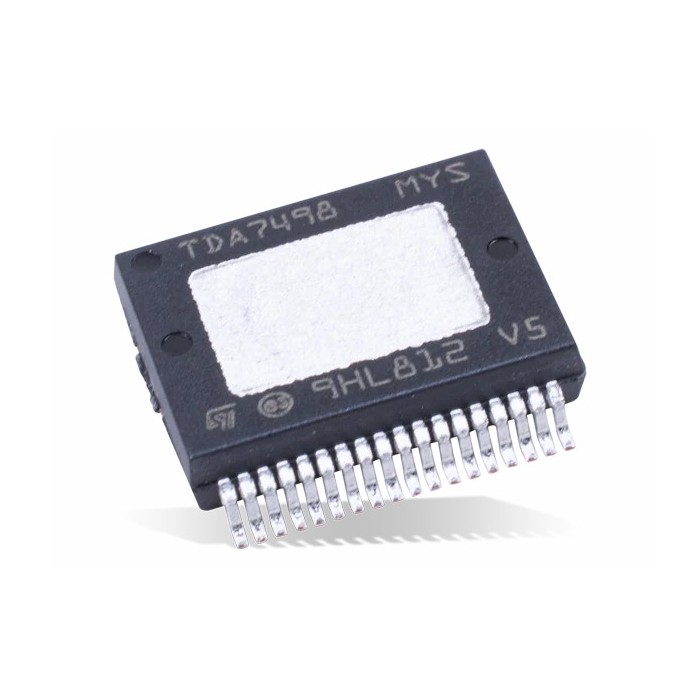

TDA7498, 160W Audio Amplifiers, PowerSSO-36

$2.5000
In stock
SKU
S1-0008
Volume discounts:
  • +100 6 % $2.3400
  • +300 8 % $2.2900
  • +500 10 % $2.2400
  • +1000 12 % $2.1900
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
LM386M-1, 325 mW Audio Amplifier, SO-8 (SOP-8) Previous LM386M-1, 325 mW Audio Amplifier, SO-8 (SOP-8)

The TDA7498 is a dual-channel class D audio amplifier designed for home systems and active speaker applications. It comes in a 36-pin PowerSSO package with an exposed pad up (EPU) to facilitate mounting a separate heatsink. Operating over a supply voltage range from 14V to 39V, the TDA7498 delivers a maximum output power of 100W per channel into a 6Ω load with a 36V supply voltage. These features make it a suitable choice for high-quality audio systems.

Specifications of TDA7498 Dual-Channel Class D Audio Amplifier

  • Operating Supply Voltage: 14V to 39V
  • Maximum Output Power: 100W per channel into 6Ω with a 36V supply voltage
  • High Efficiency: Approximately 90%
  • Selectable Gain Settings: 25.6dB, 31.6dB, 35.1dB, and 37.6dB
  • Differential Inputs: Minimize common-mode noise
  • Standby and Mute Features: Yes
  • Short-Circuit Protection: Yes
  • Thermal Overload Protection: Yes
  • Externally Synchronizable: Yes
  • Dimensions: 10.5mm x 10.5mm x 4.5mm

Datasheet of TDA7498

For detailed technical information, refer to the TDA7498 Datasheet.

More Information
Package PowerSSO-36
Packaging Tape & Reel
Operating Temperature Min 0 C°
Operating Temperature Max +70 C°
Mounting Type SMD/SMT
Components - Type Audio Amplifiers
Output Power 160W
