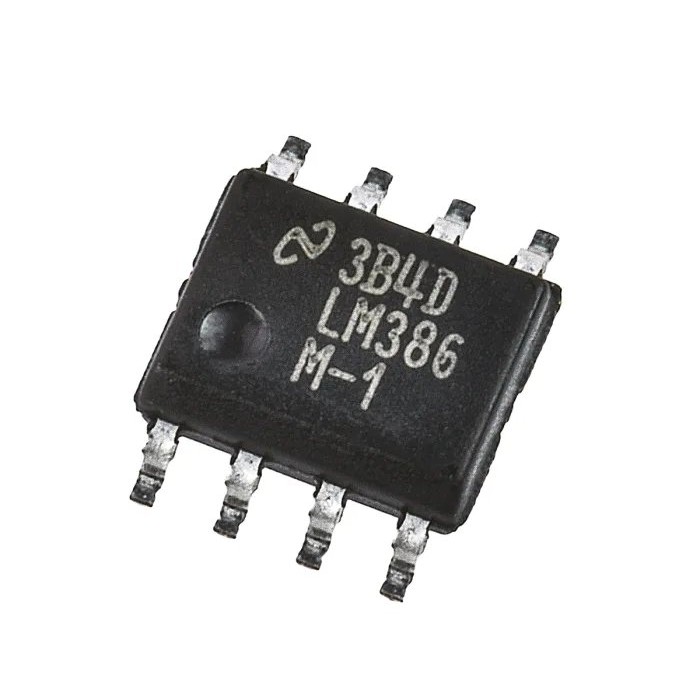

LM386M-1, 325 mW Audio Amplifier, SO-8 (SOP-8)

$0.0310
In stock
SKU
S1-0009
Volume discounts:
  • +500 4 % $0.0298
  • +1000 5 % $0.0293
  • +5000 7 % $0.0287
  • +10000 9 % $0.0281
  • +20000 11 % $0.0275
LM386M-1, 325 mW Audio Amplifier, SO-8 (SOP-8) is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
TDA2822M (12V), 2W Audio Amplifier, DIP-8 Previous TDA2822M (12V), 2W Audio Amplifier, DIP-8

The LM386D is a low-voltage audio amplifier IC available in an SO-8 (SOP-8) package. Designed for low-voltage consumer applications, it has an internal gain of 20, which can be increased up to 200 by adding a resistor and capacitor between pins 1 and 8. The inputs are ground-referenced, and the output is automatically biased to half the supply voltage. The quiescent power drain is only 24 milliwatts, making it suitable for battery-powered applications.

Specifications of LM386D Low-Voltage Audio Amplifier IC

  • Operating Supply Voltage: 4V to 12V or 5V to 18V
  • Quiescent Current Drain: 4mA
  • Internal Gain: 20 (can be increased up to 200 with external components between pins 1 and 8)
  • Inputs: Ground-referenced
  • Output: Automatically biased to half the supply voltage
  • Dimensions: 4.9mm x 4.9mm x 1.75mm

Datasheet of LM386D

For detailed technical information, refer to the LM386D Datasheet.

More Information
Package SO-8 (SOP-8)
Packaging Tape & Reel
Operating Temperature Min 0 C°
Operating Temperature Max +70 C°
Function Speaker
Mounting Type SMD/SMT
Components - Type Audio Amplifiers
Output Power 325 mW
