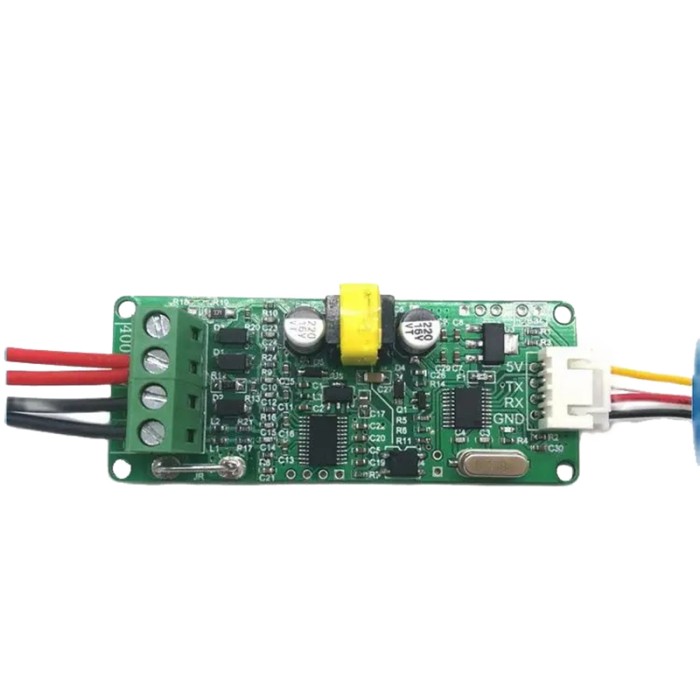

SUI-201 DC Energy Metering Module
SAVE
As low as $12.9500
In stock
Only %1 left
SKU
SEN-04-070
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.28" DC 0-100V 3-Wire Digital Voltmeter Display Module Previous
The SUI-201 DC Energy Metering Module is designed for accurate and efficient energy monitoring across various current ranges, from 1A to 100A. It offers full isolation collection for enhanced safety and performance. Ideal for industrial, commercial, or residential applications requiring precise voltage, current, and power measurements. The module supports Modbus-RTU communication or custom protocols for flexible integration, making it a versatile choice for power monitoring solutions.
Specifications of SUI-201 DC Energy Metering Module
-
Display: Not Included (can Buy Display from this link)
-
Working temperature: -40~85℃
-
Voltage measurement: 0-±60V/0-±400V
-
Current measurement: 1A-100A (various ranges available)
-
Power measurement: 1mW-400kW (optional)
-
Communication protocol: Modbus-RTU or custom protocol
-
Resolution: 1mV/1mA
-
Power supply: DC5±0.2V
-
Power consumption: <0.2W
-
Communication frequency: 2Hz (adjustable)
-
Transmission rate: 4800 to 115200 baud rate
-
Dimensions: 74.2 x 29.5 x 18 mm
Datasheet of SUI-201 DC Energy Metering Module
[Datasheet: Not available]
| Operating Voltage (V) | 5V |
|---|---|
| Operating Current (mA) | 40 |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 74.2 x 29.5 x 18 mm |
| Output Type | Digital |
| Resolution | 1mV/1mA |
| Current Range (A) | 1A-100A (various ranges available) |
| Voltage Range (V) | 0-±60V/0-±400V |
| Model | SUI-201 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | Current, Voltage, Power |
| Protocols | custom protocol, Modbus-RTU |
| Max Power (W) | 400kW |
