STM32H7B0VBT6 Mini Core Board
$16.9500
In stock
SKU
MIC-02-020
Volume discounts:
- +25 4 % $16.3000
- +50 6 % $15.9700
- +100 8 % $15.6500
- +300 10 % $15.3200
- +500 12 % $14.9900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
STM32F407 Discovery Board Previous

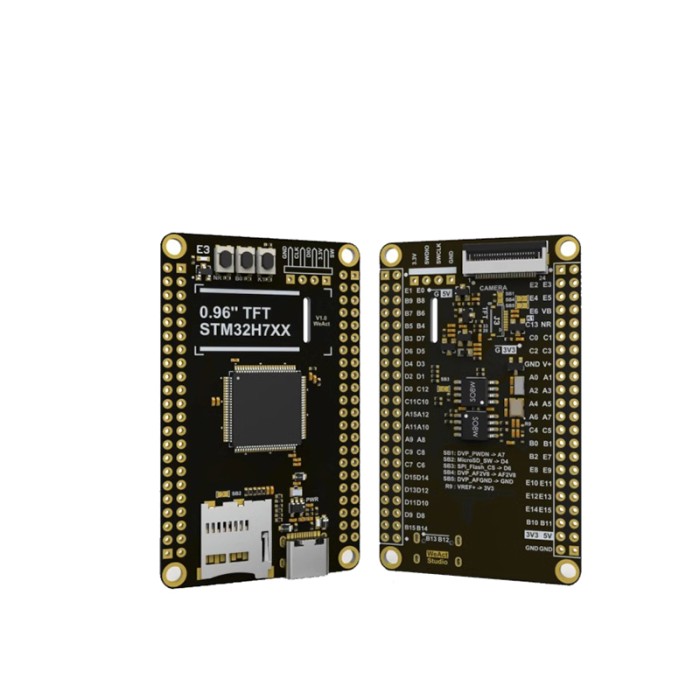

The STM32H7B0VBT6 Mini Core Board is a high-performance STM32H7 development board built around the STM32H7B0VBT6 microcontroller. It is designed for advanced embedded electronics and robotics development where multiple interfaces and memory options are required. The board operates with an Arm Cortex-M7 MCU at up to 280 MHz and includes FPU, DSP instructions, and MPU support. It also features high-speed and low-speed crystal oscillators for stable clocking. ESD protection is included on key interfaces and buttons to improve reliability.
Features of STM32H7B0VBT6 Mini Core Board
- Arm Cortex-M7 MCU
- 280 MHz operating speed
- FPU support
- DSP instructions
- MPU support
- ESD protection on key interfaces
- USB Type-C interface
- MicroSD card holder
Specifications of STM32H7B0VBT6 Mini Core Board
- Microcontroller: STM32H7B0VBT6
- Processor: Arm Cortex-M7 MCU @ 280 MHz
- FPU
- DSP instructions
- MPU
- 128KB Flash program memory
- 8MB SPI Flash
- 8MB OSPI Flash (executable program)
- 25MHz high-speed crystal oscillator
- 32.768KHz 6pF low-speed crystal oscillator
- 3.3V - 5.5V power input
- 1A 3.3V regulated output when 5V is input
- 2x 22-pin 2.54mm pitch I/O interfaces
- 4-pin 2.54mm pitch SW debugging interface
- 1x USB Type-C interface with diode protection
- 1x MicroSD card holder
- 1x 8-bit DCMI interface
- User key K1 (PC13)
- Reset button NRST
- Boot button
- ESD protection for USB Type-C interface
- ESD protection for MicroSD card holder
- ESD protection for buttons
- DCMI camera interface with 1.5V and 2.8V power supply
- Supports sensors like OV7670 and OV2640
- TG155 board
- Lead-free soldering
- Metal-cased crystal oscillators
- Regular updates on chip batch numbers via GitHub/Gitee
- ST HAL library with routines for GPIO, MSC, camera, TFT, etc.
- OSPI download algorithm for Keil
- Dimensions: 66.88 x 40.64 mm
How to Use STM32H7B0VBT6 Mini Core Board
- Enter ISP mode by pressing BOOTO and NRST simultaneously, then release NRST and release BOOTO after 0.5 seconds.
- Enter ISP mode by holding BOOTO while powering on, waiting 0.5 seconds, then releasing it.
- Use the ST HAL library for development.
- Use the OSPI download algorithm with Keil for programming.
More Info
- STM32 download and burning instructions are available online.
- Example code is available on Gitee and GitHub.
- Common computer software is available with extraction code rji7.
| MCU/SoC | STM32H7B0VBT6 |
|---|---|
| Product Family | STM32 |
| Architecture | ARM Cortex-M7 |
| CPU Cores | 1 |
| Clock Speed (MHz) | 280 MHz |
| Flash | 128KB,8MB,8MB |
| SRAM | 1.4 MB |
| EEPROM | No |
| External Memory | 8MB SPI Flash, 8MB OSPI Flash |
| GPIO Pins | 22 |
| USB Ports | 1x USB Type-C |
| Ethernet Support | No |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Wireless | No |
| Form Factor | 66.88 x 40.64 mm |
| IDE Support | Keil |
| Input Voltage (V) | 3.3V - 5.5V |
| Antenna Type | No |
| Bluetooth Ver. | No |
