STM32H750IBK6 Development Board
$59.9500
In stock
SKU
MIC-02-023
Volume discounts:
- +5 4 % $57.6000
- +10 6 % $56.4300
- +25 8 % $55.2600
- +50 10 % $54.0900
- +100 12 % $52.9100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

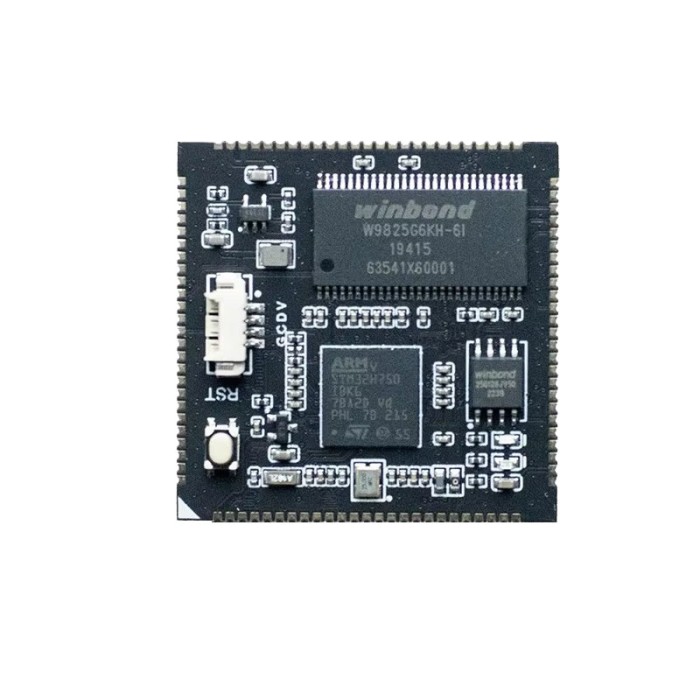

The STM32H750IBK6 Development Board is a high-performance board designed for embedded applications requiring powerful processing capabilities. Featuring an STM32H750IBK6 microcontroller clocked at 480MHz, this board offers 1MB of SRAM, 128KB of Flash, 32MB of external SDRAM, and 16MB of NOR Flash for additional storage. It comes with or without an optional 5-inch HD IPS display (800x480) with capacitive touch, making it ideal for applications requiring a graphical user interface. The board is equipped with multiple communication interfaces including RS232, RS485, FDCAN, and RMII Ethernet, as well as microSD and USB ports for added versatility.
Specifications of STM32H750IBK6 Development Board
-
Microcontroller: STM32H750IBK6
-
Operating Frequency: 480MHz
-
SRAM: 1MB
-
Flash Memory: 128KB
-
External SDRAM: 32MB (W9825G6JH-6I)
-
NOR Flash: 16MB (W25Q128jvsq)
-
LCD (Optional): 5-inch HD IPS (800x480), capacitive touch
-
I/O Pins: 91 pins
-
Communication Ports: 2x RS232, 1x RS485, 2x FDCAN, 1x RMII Ethernet
-
Camera Interface: DCMI
-
Serial Interface: 1 Port
-
MicroSD Slot: 1 Slot
-
Buttons: 4 buttons + Boot button
-
USB: MicroUSB (FS) and USB TTL (USB to TTL)
-
Power Supply: 3.3V operation, 5V input
-
Board Size: 50x50mm (without LCD), 133x77mm (with LCD)
Manufacture of STM32H750IBK6 Development Board
STM32H750IB - STMicroelectronics| MCU/SoC | STM32H750IBK6 |
|---|---|
| Product Family | STM32 |
| Architecture | ARM Cortex-M7 |
| CPU Cores | 1 |
| Clock Speed (MHz) | 480MHz |
| Flash | 128KB |
| SRAM | 1MB |
| External Memory | 32MB, 16MB |
| GPIO Pins | 91 pins |
| USB Ports | MicroUSB (FS) and USB TTL (USB to TTL) |
| CAN Bus Support | 2x FDCAN |
| Ethernet Support | Yes |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Wireless | No |
| Form Factor | 50x50mm (without LCD), 133x77mm (with LCD) |
| Input Voltage (V) | 5V |
| Antenna Type | No |
| Bluetooth Ver. | No |
