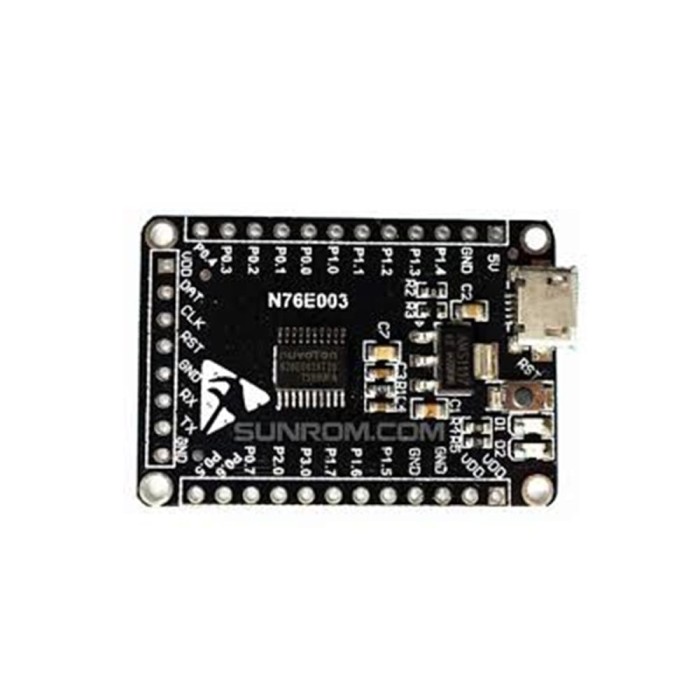

Nuvoton N76E003AT20 51 Development Board
$1.9500
In stock
SKU
DEV-05-001
Volume discounts:
- +50 4 % $1.8700
- +100 6 % $1.8400
- +300 8 % $1.8000
- +500 10 % $1.7600
- +1000 12 % $1.7200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
NU-Link ICP Programmer for NUVOTON Devices Previous
The Nuvoton N76E003AT20 51 Development Board is a versatile and powerful board for microcontroller development. With its N76E003AT20 chipset and various interfaces, this board offers stable and efficient performance for a variety of projects. It also has a compact and user-friendly design, making it suitable for both beginners and professionals.
Equipped with a 1T 8051-based microcontroller, the Nuvoton N76E003AT20 51 Development Board offers fast processing speeds and reliable performance. It also has built-in flash memory and GPIO pins, providing flexibility for your designs. With its affordable price and practical functionality, this board is a top choice for microcontroller enthusiasts and developers. Upgrade to the Nuvoton N76E003AT20 51 Development Board and explore the endless possibilities of microcontroller development.
Specification of Nuvoton N76E003AT20 51 Development Board:
- brand: NUVOTON
- device core: 8-bit 1T/8051
- Complete model: N76E003AT20
- Main frequency: 16MHz
- Package form: TSSOP20
- Operating temperature: -40„ to +105„
- Operating Voltage: 5.5V to 24V
- Sleep current (typ): Less than 5µA
- Flash space: 18K Bytes
- EEROM: 18K Bytes flash memory can be used
- VO quantity: 17+1 input
- PWM: 6 channels 16bit
- Timer: 3x16bit+1x16bit(for PWM)
- ADC: 8 channels 12 bit, 400kHz
- UART quantity: 2
- SP quantity: 1 (8Mbit/s)
- Number of FCs: 1 (400kbit/s)
- High speed internal RC: 16MHz±1% @25°C, 16MHz+2% @-40 to +105°C
- Low speed internal RC: 10kHz low speed internal RC
- ESD&EFT: HBM/8KV MM/400V/ Over 4kV
- ICE: on-chip/ two-wire
- For more information click on bellow link:
https://pan.baidu.com/s/1xKHochoU52U3Gtys7R556g?pwd=113e
Extraction code:113e
| MCU/SoC | N76E003AT20 |
|---|---|
| Architecture | E8051 |
| CPU Cores | Single-core 1T 8051 |
| Clock Speed (MHz) | 16MHz |
| Flash | 18KB |
| SRAM | 1KB (256B Internal + 768B Auxiliary) |
| EEPROM | 18KB shared with flash |
| External Memory | No |
| GPIO Pins | 18 (17 GPIO + 1 Input) |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 2 |
| USB Ports | No |
| CAN Bus Support | No |
| Ethernet Support | No |
| ADC Channels | 8 channels 12 bit |
| DAC Channels | No |
| PWM Channels | 6 channels 16bit |
| Timers Count | 3 x 16-bit, 1 x 16-bit (for PWM) |
| Operating Voltage (V) | 5.5V to 24V |
| GPIO Voltage (V) | 3.3V, 5V |
| GPIO Current (mA) | 15mA |
| Sleep Current (µA) | Less than 5µA |
| Wireless | No |
| Form Factor | TSSOP20 Development Board |
| IDE Support | IAR, Keil uVision |
| Input Voltage (V) | 5.5V to 24V |
| Antenna Type | No |
| Bluetooth Ver. | No |
| Operating Temp (°C) | -40℃ to +105℃ |
