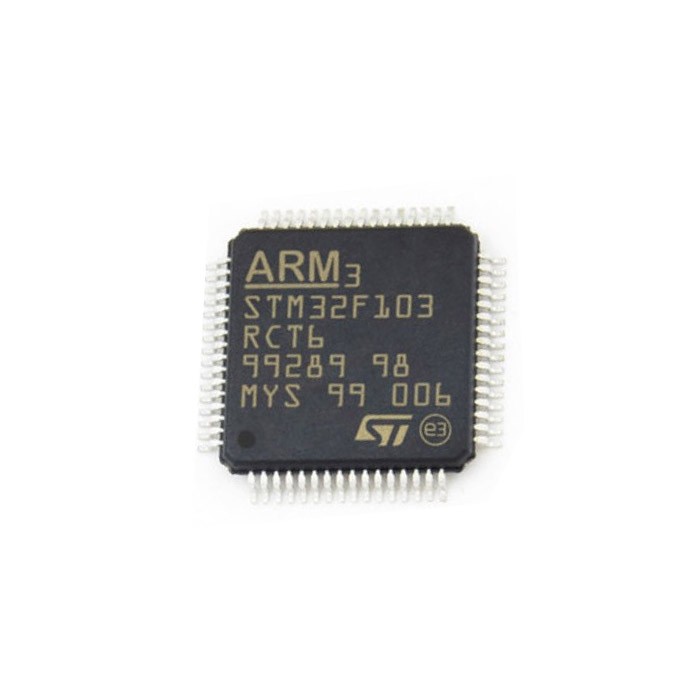

STM32F103RCT6, 12 bit 72 MHz ARM Cortex M Microcontroller, LQFP-64
$1.2500
In stock
SKU
S2-0029
Volume discounts:
- +100 7 % $1.1600
- +300 10 % $1.1300
- +500 13 % $1.0900
- +1000 15 % $1.0600
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
STM32F030C8T6, 12 bit 48 MHz STM32F030 Microcontroller, LQFP-48
Previous
The STM32F103RCT6 microcontroller is a high-performance, low-power 32-bit microcontroller based on the ARM® Cortex®-M3 core. This chip features 256 KB of flash memory, 48 KB of SRAM, and operates at frequencies up to 72 MHz. With a range of communication interfaces such as USB, CAN, I2C, SPI, and USART, the STM32F103RCT6 is suitable for various applications. This microcontroller is available in a 64-pin LQFP package.
Specifications of STM32F103RCT6 Microcontroller
- Architecture: 32-bit ARM® Cortex®-M3 core
- Flash Memory: 256 KB
- SRAM: 48 KB
- Operating Frequency: Up to 72 MHz
- Operating Voltage: 2.5 to 3.6 volts
- Communication Interfaces: USB 2.0 Full-Speed, CAN 2.0B, 2×I2C, 3×SPI, 5×USART
- Timers: 4 general-purpose 16-bit timers, 2 advanced-control 16-bit timers, 2 24-bit timers
- Analog-to-Digital Converter (ADC): 16 channels with 12-bit resolution
- Package: 64-pin LQFP
| Package | LQFP-64 |
|---|---|
| Packaging | Tray |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| ADC Resolution | 12 bit |
| Mounting Type | SMD/SMT |
| Components - Type | ARM Microcontrollers - MCU |
| Maximum Clock Frequency | 72 MHz |
| Processor Series | ARM Cortex M |
