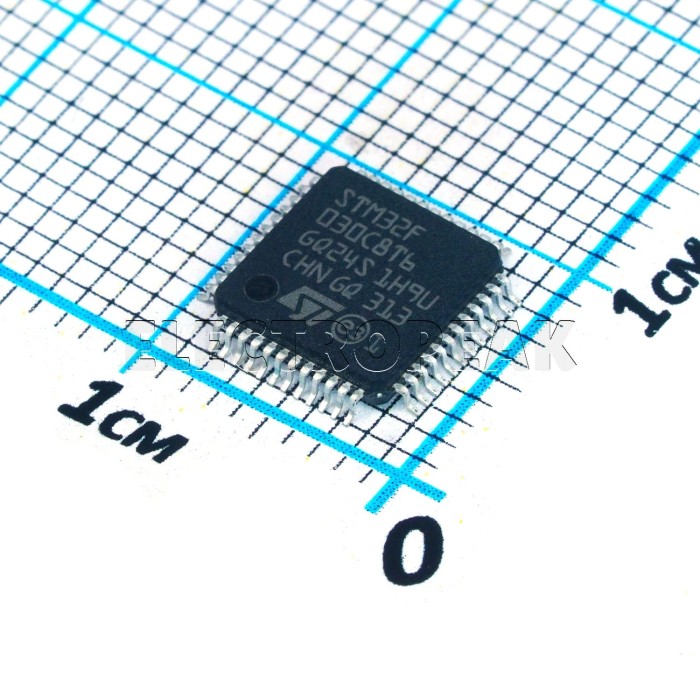

STM32F030C8T6, 12 bit 48 MHz STM32F030 Microcontroller, LQFP-48
[S2-0027]
Volume discounts:
- +100 4 % $0.48
- +500 6 % $0.47
- +1000 8 % $0.46
- +5000 10 % $0.45
- +10000 14 % $0.43
Shop with confidence
Learn More
Availability:
SKU
S2-0027
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
$0.50
The STM32F030C8T6 microcontroller is a high-performance, low-power 32-bit microcontroller based on the ARM® Cortex®-M0 core. This chip features 64 KB of flash memory, 8 KB of SRAM, and operates at frequencies up to 48 MHz. With a range of communication interfaces such as I2C, SPI, and USART, the STM32F030C8T6 is suitable for various applications. This microcontroller is available in a 48-pin LQFP package.
Specifications of STM32F030C8T6 Microcontroller
- Architecture: 32-bit ARM® Cortex®-M0 core
- Flash Memory: 64 KB
- SRAM: 8 KB
- Operating Frequency: Up to 48 MHz
- Operating Voltage: 2.4 to 3.6 volts
- Communication Interfaces: 2×I2C, 2×SPI, 2×USART
- Timers: 3 general-purpose 16-bit timers, 1 advanced 16-bit timer, 2 watchdog timers
- Analog-to-Digital Converter (ADC): 12 channels with 12-bit resolution
- Package: 48-pin LQFP
| Package | LQFP-48 |
|---|---|
| Packaging | Tray |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| ADC Resolution | 12 bit |
| Mounting Type | SMD/SMT |
| Components - Type | ARM Microcontrollers - MCU |
| Maximum Clock Frequency | 48 MHz |
| Processor Series | STM32F030 |
