XH-M181 PAM8610 Stereo Amplifier Board - 2x15W Class D

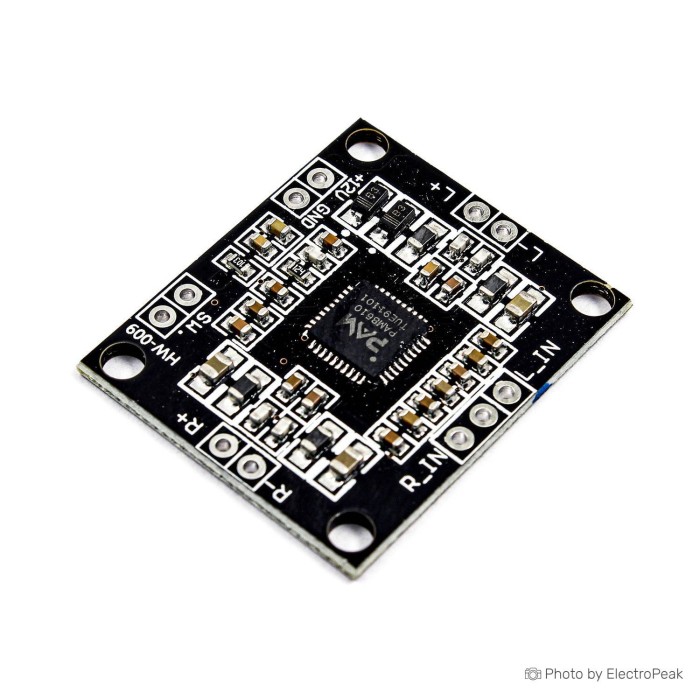

XH-M181 PAM8610 Stereo Amplifier Board is a dual-channel digital audio amplifier module for stereo sound amplification. It uses the PAM8610 chip and Class D (PWM modulation) operation. The board provides compact audio amplification with low power consumption and high efficiency. It is designed for 2-channel output and supports speaker loads in the 4 to 8 ohm range. The module operates from DC 6-15V and has a recommended supply of 12V. Its output power is 10W x 2 at 8Ω and 15W x 2 at 4Ω. The frequency response is 20HZ-15KHZ. This amplifier board has a static current of 20MA and an input resistance of 15K. It also lists a speaker power range of 10-100W. The board size is 28x22x2.5 mm.

Features of XH-M181 PAM8610 Stereo Amplifier Board

• Dual-channel stereo output
• Class D PWM operation
• PAM8610 chip
• DC 6-15V supply
• Recommended 12V input
• 2x15W output power
• 20HZ-15KHZ frequency response
• Compact 28x22x2.5 mm size

Specifications of XH-M181 PAM8610 Stereo Amplifier Board

• IC: PAM8610
• Mode: Class D (PWM modulation type)
• Supply: DC 6-15V
• Recommended supply: 12V
• Dimensions: 28x22x2.5 mm
• Output power: 10W x 2 (8Ω)
• Output power: 15W x 2 (4Ω)
• Frequency response: 20HZ-15KHZ
• Channels: 2
• Static current: 20MA
• SNR: 90%
• Speaker power: 10-100W
• Input resistance: 15K
• Output resistance: 4-8 ohm

How to Use XH-M181 PAM8610 Stereo Amplifier Board

1. Connect a DC 6-15V power supply to the board.
2. Connect the audio input and stereo speakers within the listed load range.
3. Use the board in a setup that matches the required speaker and output specifications.

More Info

• Do not short-circuit the audio outputs to each other or to ground.
• The board is intended for stereo audio amplification.
