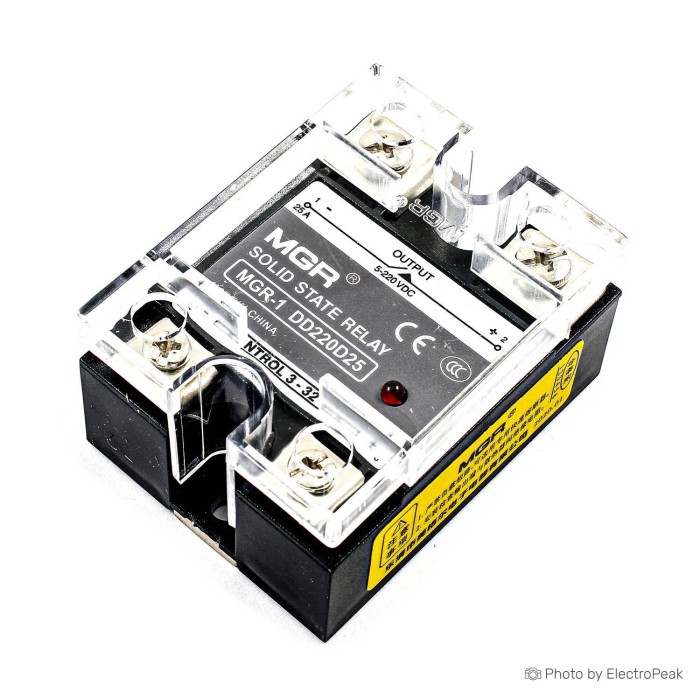

MGR-1 SSR Solid State Relay - 25A, Single Phase
$5.5000
In stock
SKU
REL-01-002
Volume discounts:
- +25 5 % $5.2200
- +50 8 % $5.0800
- +100 10 % $4.9300
- +300 13 % $4.7900
- +500 15 % $4.6500
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SSR-40DA SSR Solid State Relay - 40A, Single Phase Previous
MGR-1 SSR Solid State Relay is a solid-state switching module for DC load control. It is designed as an electronic relay with no moving parts. The unit includes an LED indicator and supports single-phase switching. Its electrical ratings and control range make it suitable for applications that require defined input and output limits.
Features of MGR-1 SSR Solid State Relay - 25A, Single Phase
- Solid-state switching
- LED indicator
- Single-phase switching
- No moving parts
Specifications of MGR-1 SSR Solid State Relay - 25A, Single Phase
- Model: MGR-1 DD220D25
- Control Voltage: 3V ~ 32V DC
- Control Current: 5mA ~ 25mA DC
- Load Voltage: 5V ~ 220V DC
- Load Current: 25A
- Dielectric Strength: 2500V AC
- Operating Temperature: -30°C ~ 75°C
- Size: 57.6mm x 44.5mm x 31.7mm
How to Use MGR-1 SSR Solid State Relay - 25A, Single Phase
- Connect the control input within the specified voltage and current range.
- Connect the DC load within the specified load voltage and load current range.
- Use the LED indicator to observe relay status.
More Info
- Solid-state relay
- Electronic switching device
- DC load switching
| Operating Voltage (V) | 3.7V-30V |
|---|---|
| Mounting Type | Panel Mount |
| Control Type | Solid State Relay (SSR) |
| Channel Count | 1 |
| Switching Capacity | 25A / 5-200VDC |
| Load Current (A) | 25A |
| Control Signal | Digital |
| Chipset | MGR-1 |
| LED Count | 1 |
| Relay Type | SSR |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
