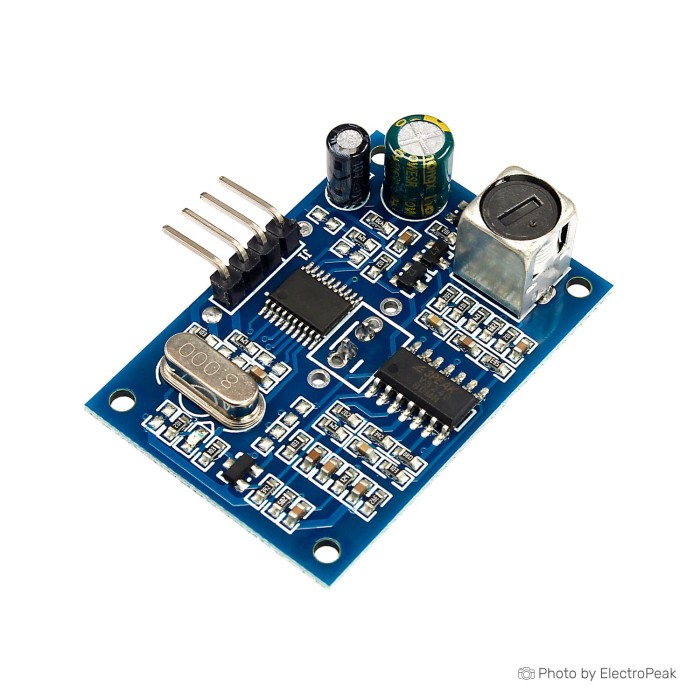

SR04T Ultrasonic Ranging Module
$1.9500
In stock
SKU
SEN-07-018
Volume discounts:
- +50 4 % $1.8700
- +100 6 % $1.8400
- +300 8 % $1.8000
- +500 10 % $1.7600
- +1000 12 % $1.7200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
RCWL-1605 Ultrasonic Distance Sensor Module Previous
JSN-SR04T Ultrasonic Ranging Module is a waterproof ultrasonic distance sensor for distance measurement with ultrasonic waves. It is suitable for use with microcontroller boards such as Arduino Uno, Arduino Due, Arduino Pro Mini, and Arduino Nano. The module transmits 40 kHz sound waves and calculates distance from the return time. It is designed for outdoor environments and applications that require a water-resistant ranging sensor.
Features of JSN-SR04T Ultrasonic Ranging Module
- Waterproof sensor design
- 40 kHz acoustic emission
- 4.5 m measuring range
- 25 cm blind distance
- About 0.5 cm resolution
- Less than 50 degrees angle
- Compatible with Arduino boards
Specifications of JSN-SR04T Ultrasonic Ranging Module
- Model: JSN-SR04T
- Operating voltage: DC 5V
- Quiescent current: 5mA
- Total current work: 30mA
- Acoustic emission frequency: 40khz
- Farthest distance: 4.5m
- Blind: 25cm
- Resolution: about 0.5cm
- Angle: less than 50 degrees
- Working temperature: -10 ~ 70C
- Storage temperature: -20 ~ 80C
- Cable Length: 2.5 Meter
- +5V: positive power supply
- Trig (control side): RX
- Echo (the receiver): TX
- GND: negative
How to Use JSN-SR04T Ultrasonic Ranging Module
- Connect +5V to the positive power supply and GND to negative.
- Connect Trig to RX and Echo to TX.
- Read the distance value using the connected microcontroller board.
More Info
- Uses ultrasonic waves for distance measurement.
- Suitable for outdoor and water-resistant ranging applications.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 5mA - 30mA |
| Operating Temp (°C) | -10 to 70C |
| Mounting Type | Panel Mount |
| Output Type | PWM |
| Accuracy | 0.5cm |
| Detection Distance | 25cm - 4.5m |
| Detection Angle (°) | less than 50 degrees |
| Sensing Method | Ultrasonic |
| Chipset | JSN-SR04T |
| Channels | 1-channel |
| Sensor Model | JSN-SR04T |
