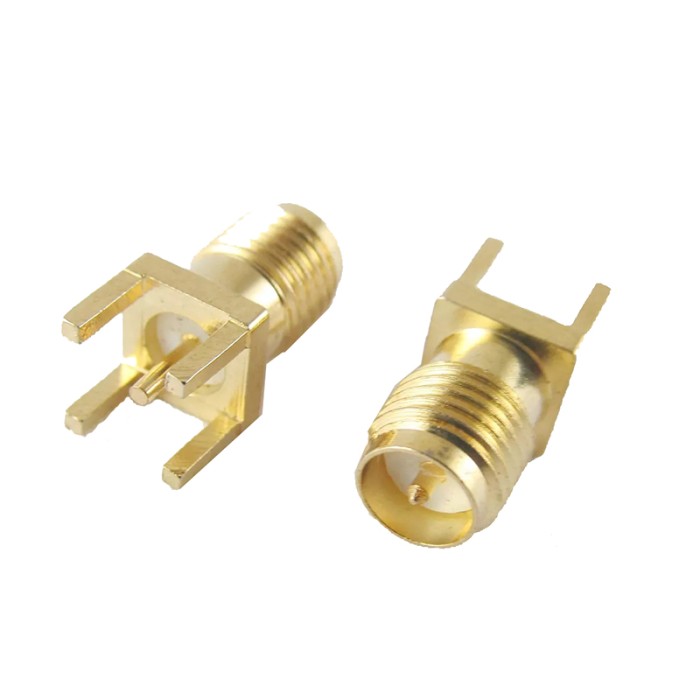

SMA Female PCB Connector (Straight)

SAVE
As low as $0.0400
In stock
Only %1 left
SKU
CAB-26-003
SMA Female PCB Connector (Straight) is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
PCB Mount SMA Female Connector (Straight) Previous PCB Mount SMA Female Connector (Straight)

The SMA Female PCB Connector (Straight) is designed for high-frequency applications, offering exceptional performance up to 18 GHz. This connector features a 50Ω impedance and provides low signal reflection. Its straight design is ideal for straightforward PCB mounting, ensuring reliable and secure connections. The connector is built to high standards, guaranteeing durability and consistent electrical performance across a wide range of electronic and telecommunications applications.

Specifications of SMA Female PCB Connector (Straight)

  • Impedance: 50Ω

  • Frequency Range: 0~6 GHz

  • VSWR:

    • Straight Type: ≤ 1.3 max

    • Right Angle Type: ≤ 1.5 max

  • Dielectric Withstanding Voltage:

    • 1000 V rms min for RG142, RG405

    • 750 V rms min for RG316, RG402

    • 500 V rms min for RG178

  • Working Voltage:

    • 500 V rms max for RG142, RG405

    • 375 V rms max for RG316, RG402

    • 170 V rms max for RG178

  • Center Contact Resistance: ≤ 6.0 mΩ

  • Outer Contact Resistance: ≤ 2.0 mΩ

  • Insulation Resistance: ≥ 5 x 10³ mΩ

  • Coupling: 1/4-36 thread

  • Contact Retention: 15 in-lbs min.

  • Coupling Nut Torque: 30 in-lbs min.

  • Durability (Mating): ≥ 500 cycles (For Beryllium Copper Contact)

  • Environmental Characteristics:

    • Temperature Range: -65°C to +165°C

    • Vibration: MIL-STD-202 Meth.204

    • Corrosion Resistance: MIL-STD-202 Meth.101
