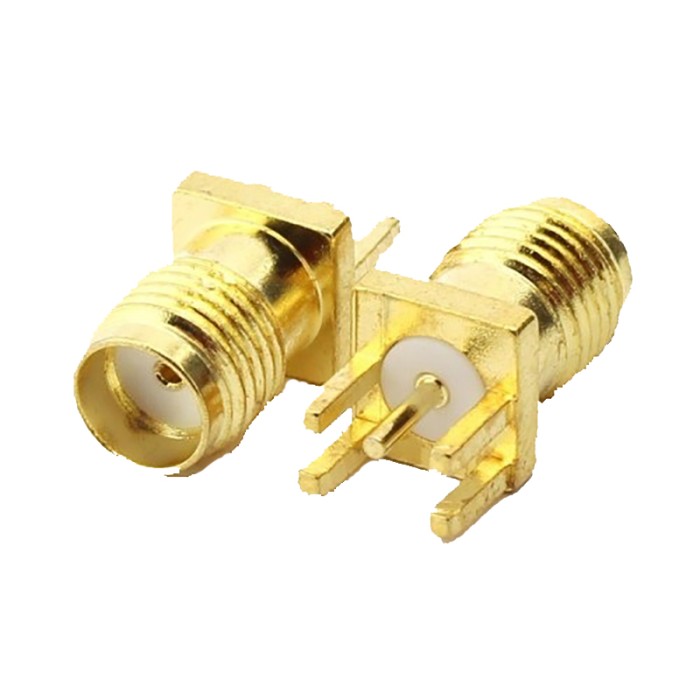

PCB Mount SMA Female Connector (Straight)
SAVE
As low as
$0.0400
In stock
Only %1 left
SKU
CAB-26-001
PCB Mount SMA Female Connector (Straight) is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
PCB Mount SMA Female Connector (Right Angle)
Previous
The PCB Mount SMA Female Connector (Straight) is engineered for precision and high-frequency applications, providing exceptional electrical performance up to 18 GHz. This connector features a 50Ω impedance and ensures low signal reflection. Designed with a straight orientation for easy PCB mounting, it supports secure and reliable connections. The connector's high-quality construction guarantees durability and minimal signal loss, making it ideal for various electronic and telecommunications applications.
Specifications of PCB Mount SMA Female Connector (Straight)
-
Impedance: 50Ω
-
Frequency Range: 0~6 GHz
-
VSWR:
-
Straight Type: ≤ 1.3 max
-
Right Angle Type: ≤ 1.5 max
-
-
Dielectric Withstanding Voltage:
-
1000 V rms min for RG142, RG405
-
750 V rms min for RG316, RG402
-
500 V rms min for RG178
-
-
Working Voltage:
-
500 V rms max for RG142, RG405
-
375 V rms max for RG316, RG402
-
170 V rms max for RG178
-
-
Center Contact Resistance: ≤ 6.0 mΩ
-
Outer Contact Resistance: ≤ 2.0 mΩ
-
Insulation Resistance: ≥ 5 x 10³ mΩ
-
Coupling: 1/4-36 thread
-
Contact Retention: 15 in-lbs min.
-
Coupling Nut Torque: 30 in-lbs min.
-
Durability (Mating): ≥ 500 cycles (For Beryllium Copper Contact)
-
Environmental Characteristics:
-
Temperature Range: -65°C to +165°C
-
Vibration: MIL-STD-202 Meth.204
-
Corrosion Resistance: MIL-STD-202 Meth.101
-
Write Your Own Review
