SLA-24VDC-SL-C Relay - 12V, 30A
$0.7500
In stock
SKU
REL-01-041
Volume discounts:
- +50 4 % $0.7200
- +100 7 % $0.7000
- +300 9 % $0.6800
- +500 12 % $0.6600
- +1000 13 % $0.6500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
KS1-40DA SSR Solid State Relay - 40A, Single Phase Previous

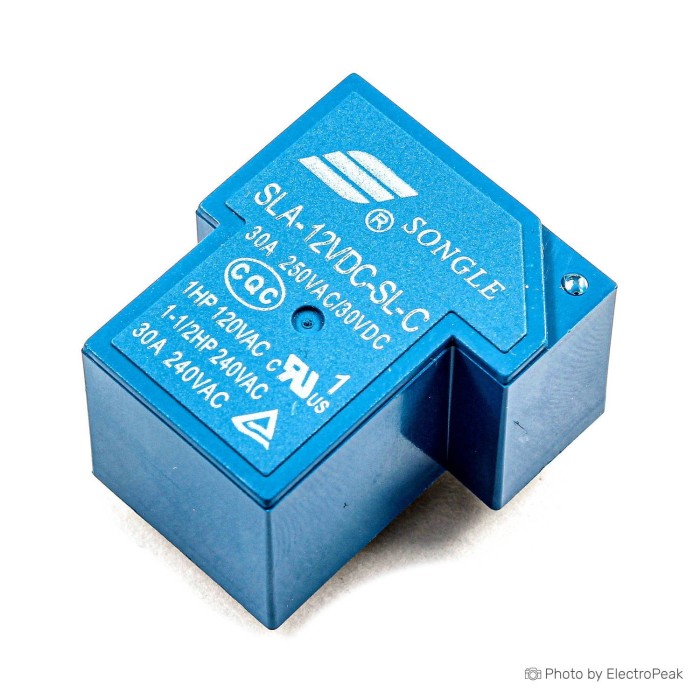

SLA-12VDC-SL-C Relay is a 6-pin electrical relay with 12V DC coil voltage and 30A current rating. It uses SPDT contacts and includes one NO contact and one NC contact. The body is made of plastic and has a dustproof construction. The pin terminals are designed for soldering on a board. This relay is suitable for applications that require switching between two circuit states.
Features of SLA-12VDC-SL-C Relay
- 6-pin relay design
- 12V DC coil voltage
- 30A current rating
- SPDT contacts
- One NO contact
- One NC contact
- Dustproof body
- Plastic housing
- Pin terminals for soldering
Specifications of SLA-12VDC-SL-C Relay
- Model: SLA-12VDC-SL-C
- Coil voltage: 12V
- Current: 30A
- Voltage: 12V DC
- Load capacity: 30A 250VAC/30VDC
- Contact type: one NO and one NC
- Power: 1HP 120VAC
- Power: 1-1/2HP 240VAC
- Power: 30A 240VAC
- Size: 31x27x20 mm
- Weight: 23 g
- Body material: plastic
How to Use SLA-12VDC-SL-C Relay
- Connect the relay coil to a 12V DC control circuit.
- Wire the load through the NO or NC contact as needed.
- Solder the pin terminals onto a board for stable mounting.
More Info
- 6-pin construction
- Dustproof sealed body
- Designed for electrical switching
