XL4432 SI4432 433MHz Wireless Transceiver Module
$3.2600
In stock
SKU
COM-03-035
Volume discounts:
- +25 4 % $3.1400
- +100 6 % $3.0700
- +300 8 % $3.0100
- +500 10 % $2.9500
- +1000 11 % $2.8900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CC1101 433MHz 10mW Wireless Transceiver Module - 500m Range Previous

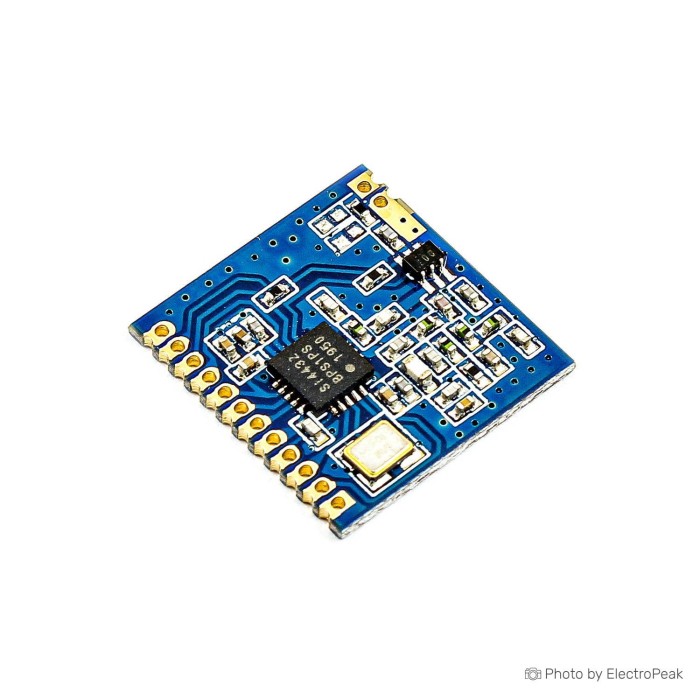

The XL4432 SI4432 433MHz Wireless Transceiver Module is a compact wireless module built around the Si4432 B1 Edition chip from Silicon Labs. It is designed for the ISM band and operates in the 433MHz frequency range. This wireless transceiver module combines low-power operation with high receiving sensitivity and high output power. It is intended for wireless communication projects that need a small, integrated RF module. The XL4432 SI4432 433MHz Wireless Transceiver Module also supports a high maximum data rate and a defined pin interface for integration.
Features of XL4432 SI4432 433MHz Wireless Transceiver Module
- Si4432 B1 Edition chip
- 433MHz operation
- Low-power design
- -121 dBm receiving sensitivity
- +20 dBm maximum output power
- 250Kbps maximum data rate
- Compact module size
- Defined pin interface
Specifications of XL4432 SI4432 433MHz Wireless Transceiver Module
- Chip: Si4432 B1 Edition from Silicon Labs
- Frequency band: 240-960 MHz
- Receiving sensitivity: -121 dBm
- Maximum output power: +20 dBm
- Chip type: EZRadioPRO ISM Band
- Power consumption: Low power
- Dimensions: 16.5x17 mm
- Maximum data rate: 250Kbps
- Transmission distance: 1000m (with active and suitable antenna)
- Operating temperature: 40- to 80- degrees Celsius
- Input voltage: 1.8V ~ 3.6V
- Maximum transmit power: 20dBm (at 1.2Kbps, 433MHz)
- Receiving sensitivity: -121 dBm (at 1.2Kbps, 433MHz)
- Modulation: FSK, GFSK and OOK
- Outputs pin: GND, GPIO0, GPIO1, GPIO2, VCC, SDO, SDI, SCLK, nSEL, nIRQ, SDN, GND, ANT
- Temperature: -40„ ~ +80„
- Size: 16.5mm x 17mm
How to Use XL4432 SI4432 433MHz Wireless Transceiver Module
- Connect the module pins to your circuit.
- Provide the input voltage within the specified range.
- Configure the wireless communication settings for your application.
- Use the ANT pin for the antenna connection.
More Info
- Based on the Silicon Labs EZRadioPRO series.
- Designed as a single-chip wireless transceiver for the ISM band.
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 1.8V - 3.6V |
| Operating Current (mA) | Low power consumption |
| Operating Temp (°C) | -40 to 80 °C |
| Dimensions (mm) | 16.5 x 17 mm |
| Mounting Type | SMD (Surface Mount) |
| Frequency Band | 433MHz, 240-960MHz |
| Data transmission rate | 250Kbps |
| RF Modulation | FSK |
| TX Power (dBm) | 20dBm |
| Range (m) | 1km |
| SIM Slots | 0 |
| Chipset | SI4432 |
| Input Voltage (V) | 1.8V - 3.6V |
| Application | ISM Band |
