Description
The new temperature and humidity sensor series SHT3x takes sensor technology to a new level. SHT3x series includes low-cost version SHT30, standard version SHT31 and high-end version. It combines multiple functions and various interfaces (I2C, voltage output) and a friendly, wide operating voltage range (2.4 to 5.5 V). These sensors are suitable for a variety of high-volume and small-volume applications.

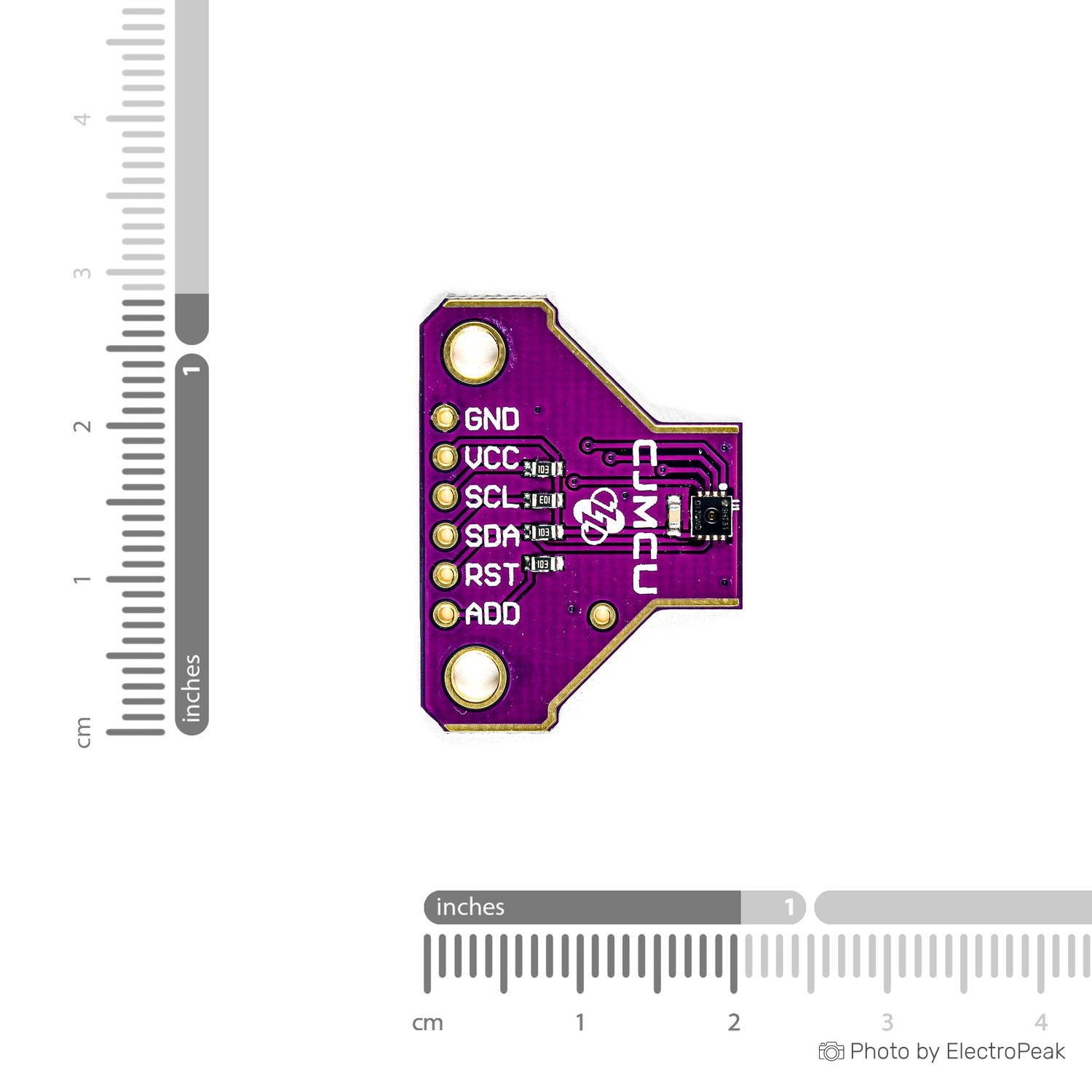

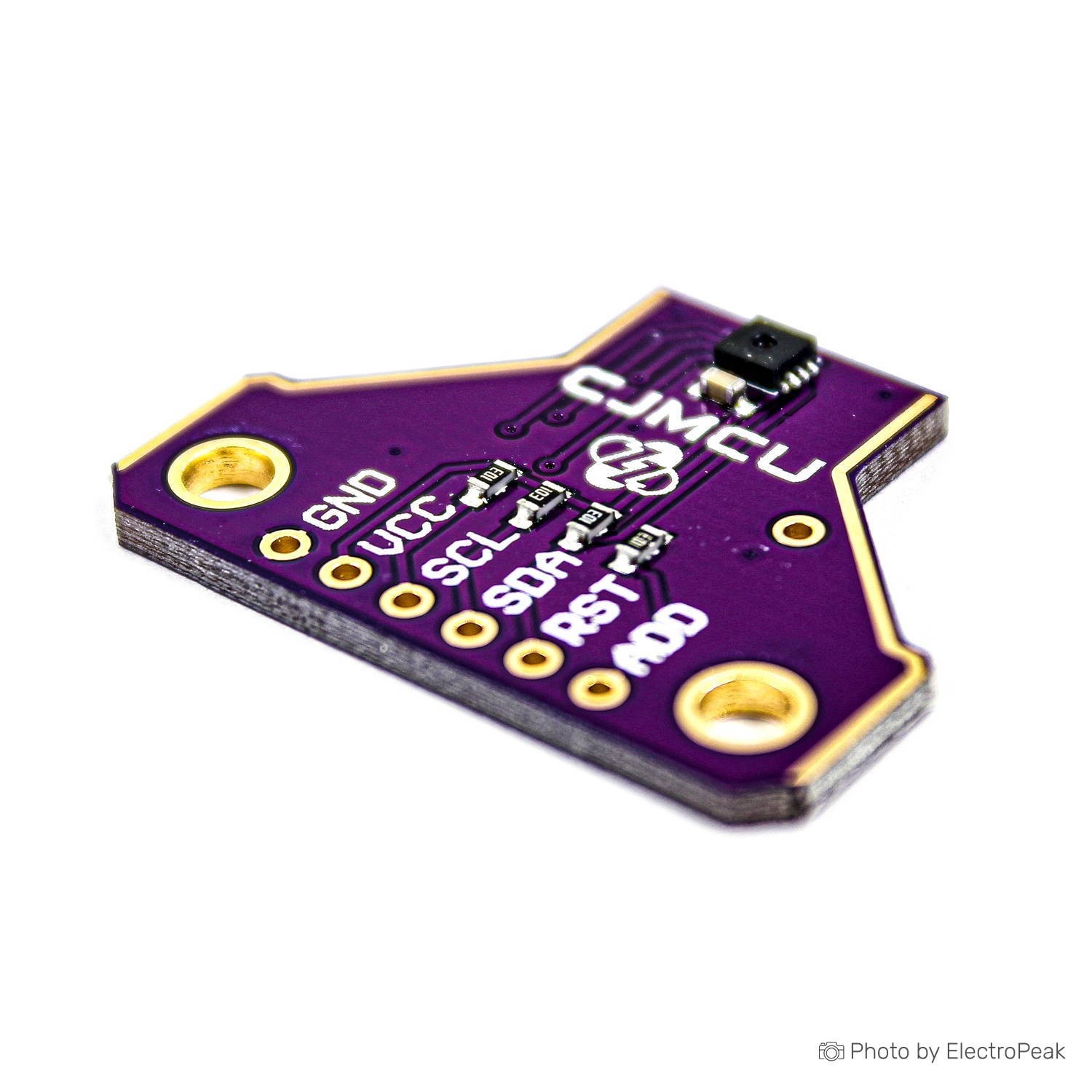

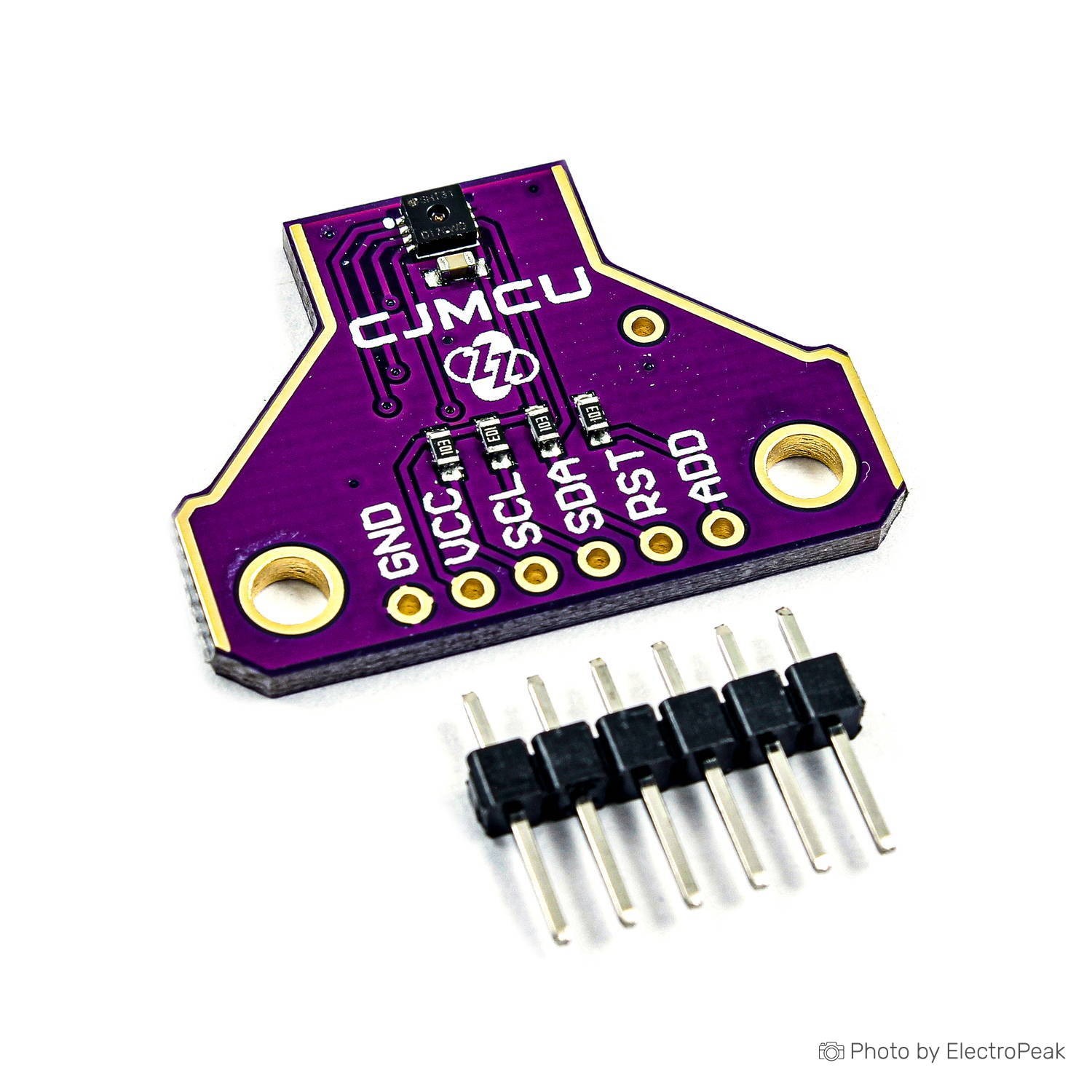

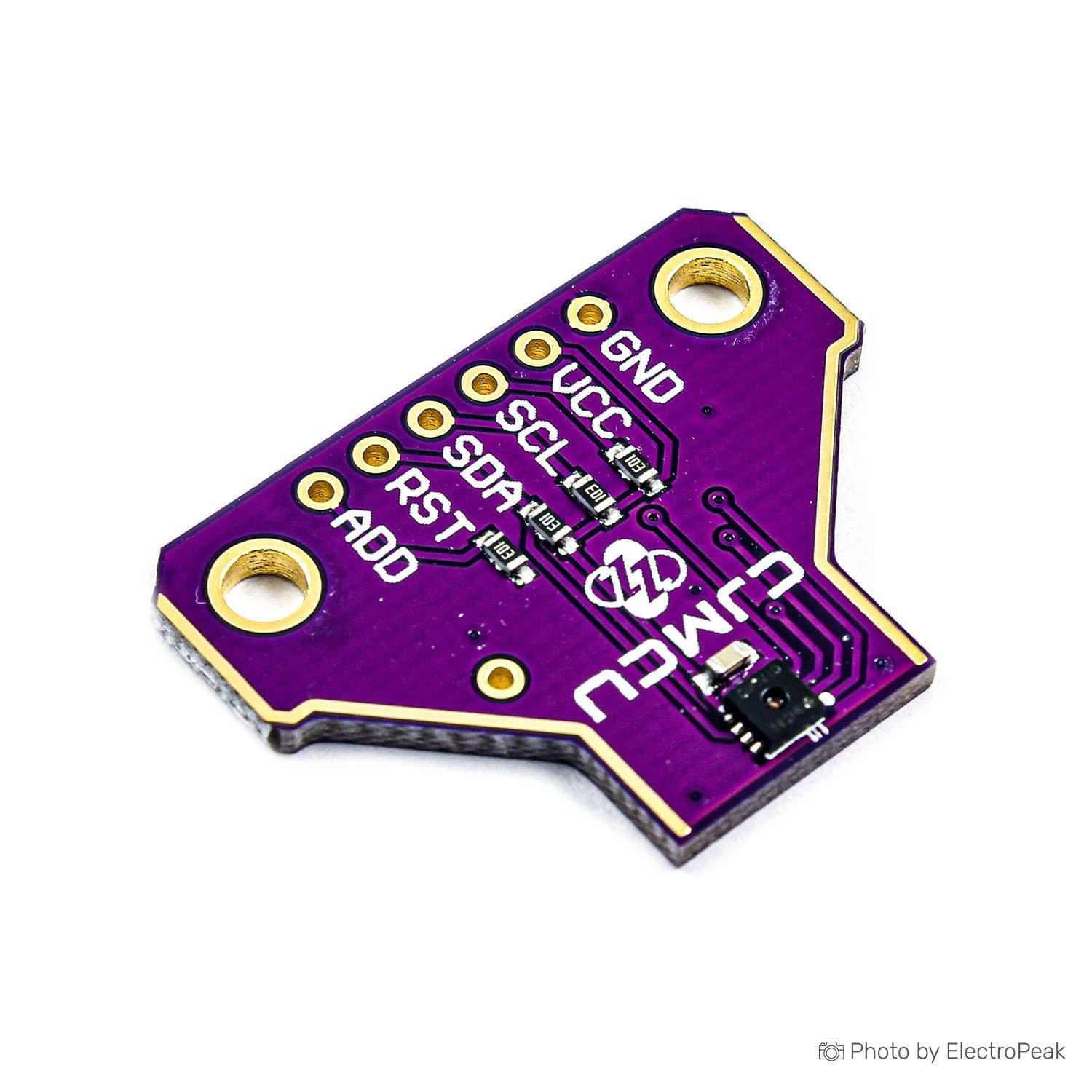

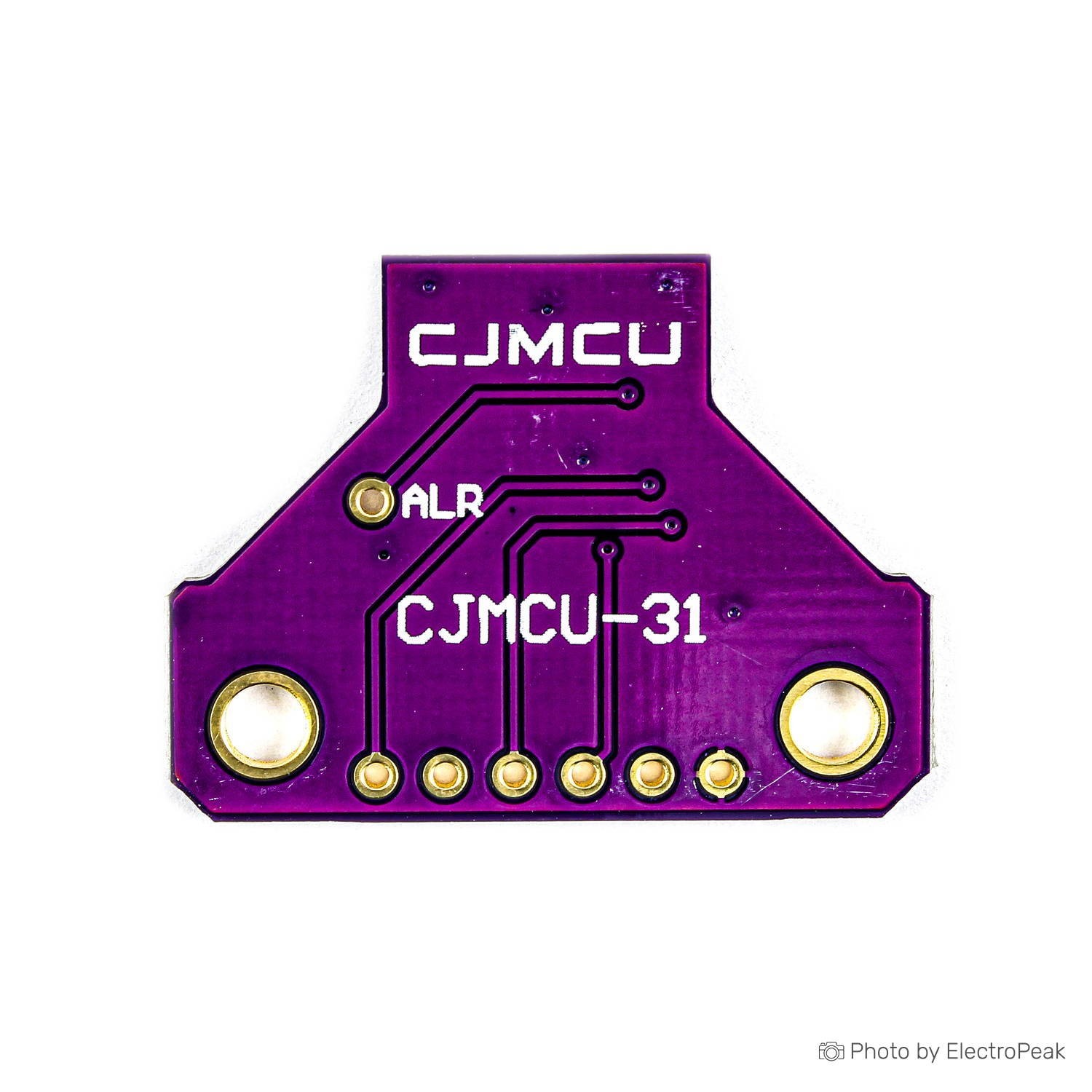

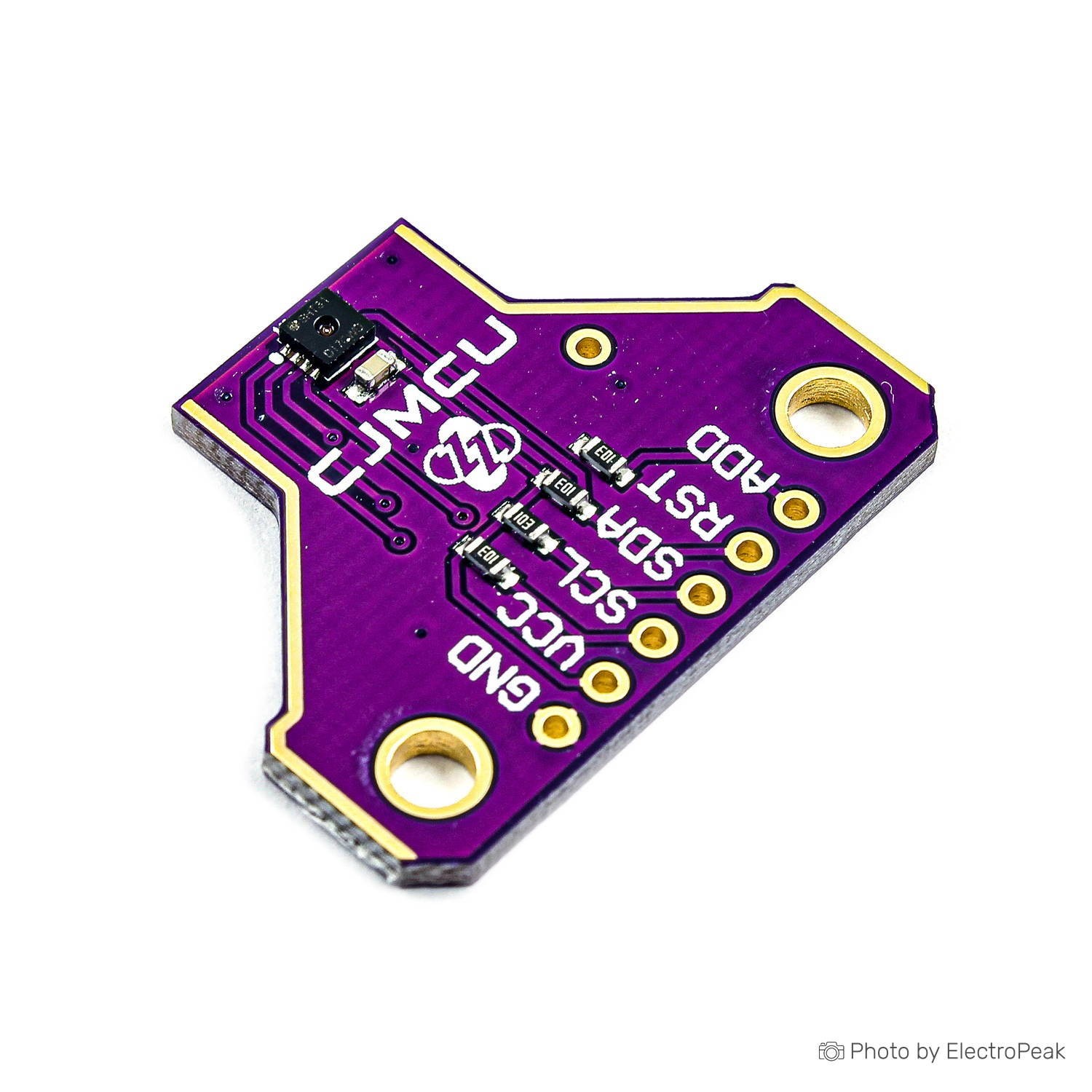

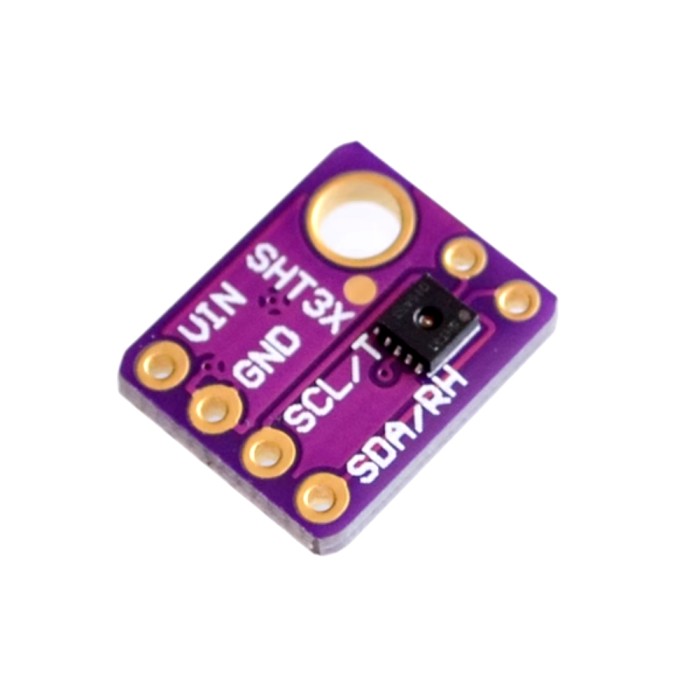

This module based on SHT3x-DIS that is the next generation of Sensirion™s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion™s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability, and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user-selectable I2C addresses and communication speeds of up to 1 MHz.
Features
Input Voltage: 2.4V ~ 5.5V
Output Type: Digital
Power consumption: 4.8μW (low repeatability, 1 measurement / sec)
Humidity Range: 0 ~ 100% RH
Humidity Accuracy: 2% RH
Humidity Resolution: 0.01% RH
Humidity response time: 8s
Temperature Range: -40°C ~ +125°C
Temperature Accuracy: 0.3°C
Temperature Resolution: 0.015°C
Temperature response time: >2s
Interface: I2C
