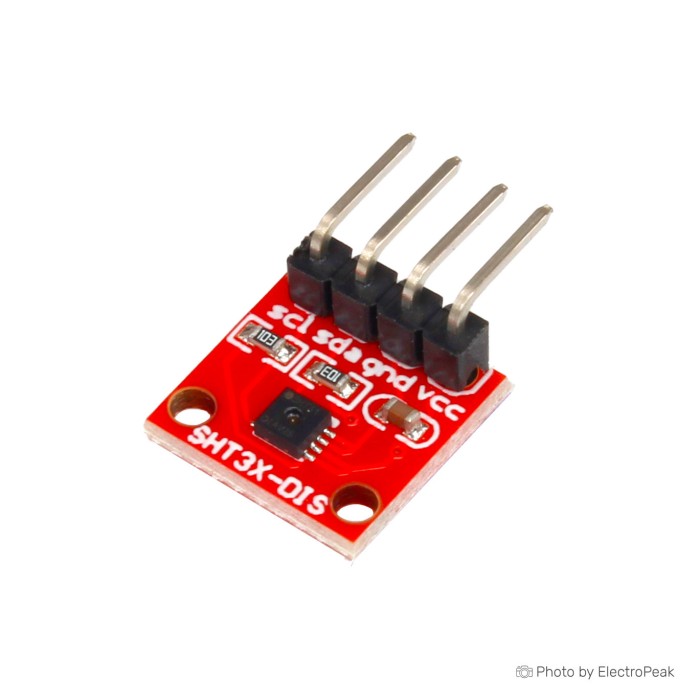

SHT31 Temperature and Humidity Sensor Module - I2C Interface
$2.7500
In stock
SKU
SEN-10-049
Volume discounts:
- +25 4 % $2.6400
- +100 6 % $2.5800
- +300 8 % $2.5300
- +500 10 % $2.4700
- +1000 12 % $2.4200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SHT30 Temperature and Humidity Sensor Module - I2C Interface Previous
The SHT31 Temperature and Humidity Sensor Module is a digital sensor module with an I2C interface and a wide operating voltage range. It is designed for temperature and humidity measurement in projects that require a calibrated sensor solution. The module supports the SHT3X sensor series and uses the standard SHT31 version. Its compact size makes it suitable for electronics and robotics applications where space matters.
Note: The pin header is soldered and is a right-angle pin header.
Features of SHT31 Temperature And Humidity Sensor Module - I2C Interface
- Digital calibrated sensor
- I2C interface
- Wide operating voltage range
- Humidity measurement support
- Temperature measurement support
- Right-angle soldered pin header
Specifications of SHT31 Temperature And Humidity Sensor Module - I2C Interface
- Operating voltage: 2.4 to 5.5 V
- Humidity measurement accuracy: ±3%
- Temperature measurement accuracy: ±0.2 °C
- Interface: I2C
- Operating humidity: 0-100% RH
- Operating temperature: -40 to 125 °C
- Size: 17x12 mm
How to Use SHT31 Temperature And Humidity Sensor Module - I2C Interface
- Connect the module through the I2C interface.
- Apply a supply voltage within the 2.4 to 5.5 V range.
- Read temperature and humidity measurements from the sensor.
More Info
- Series: SHT3X
- Sensor version: SHT31
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.4 to 5.5 V |
| Operating Current (mA) | 0.8 mA |
| Operating Temp (°C) | -40 to 125 °C |
| Dimensions (mm) | 17x12 mm |
| Mounting Type | THT |
| Output Type | I2C |
| Accuracy | ±3% RH, ±0.2 °C |
| Resolution | 0.01 °C, 0.01% RH |
| Response Time | 8 s |
| Measurement Range | Temperature: -40 to 125 °C, Humidity: 0 to 100% RH |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Temperature and humidity sensor |
| Chipset | SHT31 |
| Humidity Range | 0-100% RH |
| Relay Output | No |
| Humidity Accuracy | ±3% |
| Protocols | I2C |
| Temp Accuracy | ±0.2 °C |
