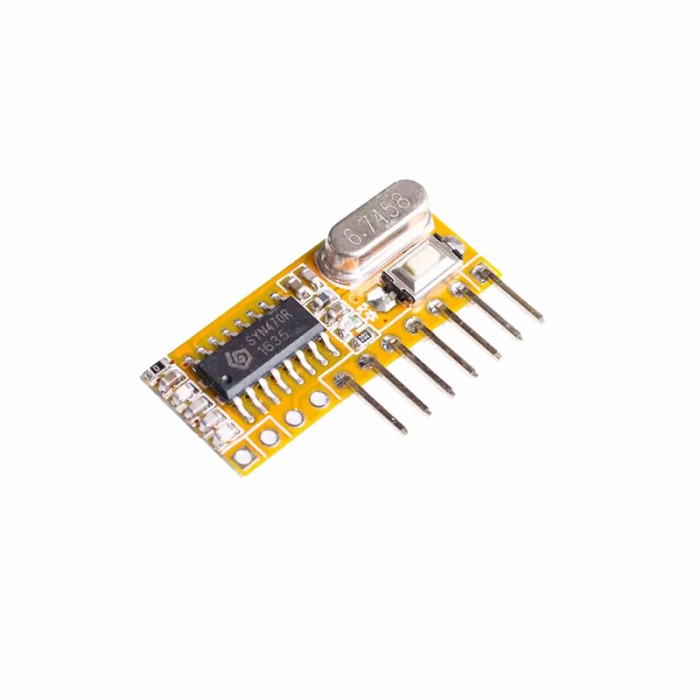

RXC6 Wireless Receiving Module with Decoding- 4-way Output

The RXC6 wireless receiving module is a 4-channel 433 MHz receiver designed for remote control applications. It features a superheterodyne design with high sensitivity and built-in 4-bit decoding, allowing it to receive and decode signals from remote codes such as 2260, 2262, 2240, and 1527. The module includes an internal data encryption circuit for secure signal reception. It supports multiple output modes, including momentary, latch (fixed), and toggle (reverse), making it suitable for various applications like warning systems, remote control, and robotics projects.

Specifications of RXC6 Wireless Receiving Module

• Frequency: 433.92 MHz
• Operating Voltage: 3~5.5V
• Operating Current: 4mA
• Receiver Sensitivity: -110dB
• Number of Pins: 7
• Operating Temperature: -30 to +85°C
• Dimensions: 28x12.5x5mm

How to use of RXC6 Wireless Receiving Module

Pin Descriptions:

• ANT: Module antenna – 32 cm spiral
• GND: Ground
• VCC: External LED positive voltage
• LED: Output indicator
• SW: External switch for programming mode
• VT: Pins D0 to D3 blink when receiving a signal

Jumper Settings:

• Both T1 and T2 open: Momentary output
• T1 closed, T2 open: Fixed output (Latch)
• T1 open, T2 closed: Inverting output (Toggle)
