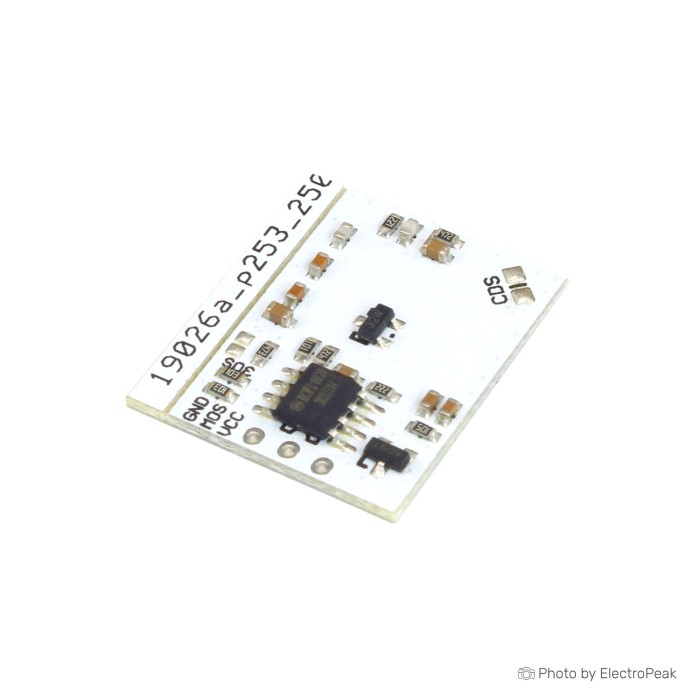

The RCWL-0513 Microwave Radar Motion Detector Sensor is a highly sensitive motion detection module that operates on microwave radar technology. It is designed for applications such as automatic lighting, security systems, and human motion detection. The sensor works within a voltage range of 3V to 30V and features a typical sensing range of 15m. With an adjustable sensing distance and repeat trigger time, it offers flexibility for various applications, including solar lights, bathroom sensor lights, and ultraviolet light systems.
Specifications of RCWL-0513 Microwave Radar Motion Detector Sensor
-
Operating Voltage: 3-30V
-
Operating Current: 2.5mA
-
Operating Frequency: 3GHz
-
Sensing Distance: Adjustable (Typical: 15m)
-
Trigger Control: Adjustable repeat trigger time
-
Built-in: 3AMOS chip
-
Applications:
-
Building lights
-
Sensor lights
-
Solar lights
-
Ultraviolet light control
-
Bathroom sensor lights
-
Human motion detection
-
-
Lead-Free Process: Yes
-
Dimensions: ---
Pins of RCWL-0513 Microwave Radar Motion Detector Sensor
-
GND: Ground connection
-
MOS:
-
Induction detected: MOS on, internally connected to ground
-
No induction: Internal MOS open
-
-
VCC: 3V-40V power supply
-
CDS:
-
External photoresistor pin (disables detection in daylight)
-
Internal pull-up resistance: 1MΩ to VCC
-
-
Trigger Control Signal:
-
<0.7V: Output always low
-
0.7V: Normal operation
-
Datasheet of RCWL-0513 Microwave Radar Motion Detector Sensor
Datasheet: Not available.
