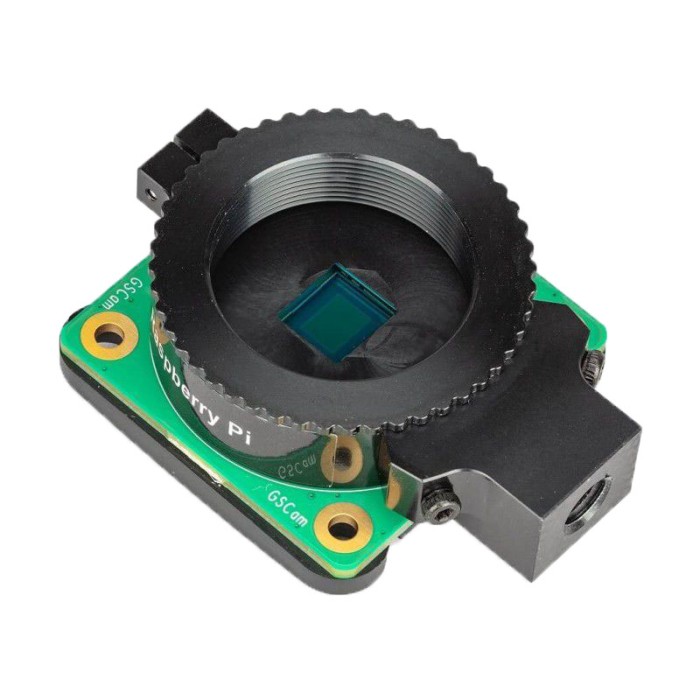

Raspberry Pi Global Shutter Camera Module

The Raspberry Pi Global Shutter Camera Module is a camera module for image capture with a global shutter design. It uses the SONY IMX296LQR-C image sensor and provides 1.58 Megapixels in color. The module supports RAW10 output and includes an integrated IR cut filter. It is designed with adjustable back focus and support for CS-mount and C-mount lenses. The camera connects through the included ribbon cable and includes a 1/4" - 20 tripod mount.

Features of Raspberry Pi Global Shutter Camera Module - 1.58MP, RAW10

• Integrated global shutter
• SONY IMX296LQR-C sensor
• 1.58 Megapixels color output
• Adjustable back focus
• CS-mount and C-mount support
• Integrated IR cut filter
• Included ribbon cable connection

Specifications of Raspberry Pi Global Shutter Camera Module - 1.58MP, RAW10

• Image Sensor: SONY IMX296LQR-C
• Resolution: 1.58 Megapixels (color)
• Shutter Type: Integrated Global Shutter
• Sensor Size: 6.3mm diagonal
• Pixel Size: 3.45µm x 3.45µm
• Output: RAW10
• Back Focus: Adjustable (12.5mm - 22.4mm)
• Lens Standards: CS-mount
• Lens Standards: C-mount (adapter included)
• Lens Compatibility: Requires a separate lens (e.g., Raspberry Pi 6mm or 16mm lens)
• IR Cut Filter: Integrated
• FFC/Ribbon Cable Length: 150mm
• Tripod Mount: 1/4" - 20
• Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device
• Compliance: EMC Directive 2014/30/EU
• Compliance: RoHS Directive 2011/65/EU
• Connectivity: Connects via included ribbon cable
• Weight: 34g (41g with adapter and dust cap)
• Dimensions: 38 x 38 x 19.8mm (29.5mm with adapter and dust cap)

How to Use Raspberry Pi Global Shutter Camera Module - 1.58MP, RAW10

1. Connect the camera module to your Raspberry Pi using the included ribbon cable.
2. Attach a compatible lens to the camera.
3. Adjust the back focus for your setup.
4. Mount the camera on a tripod if needed.
5. Capture images or videos through supported Raspberry Pi software.

More Info

• Raspberry Pi camera module with global shutter imaging
• Compatible lens adapter included for C-mount use
