Rapberry Pi Pico W

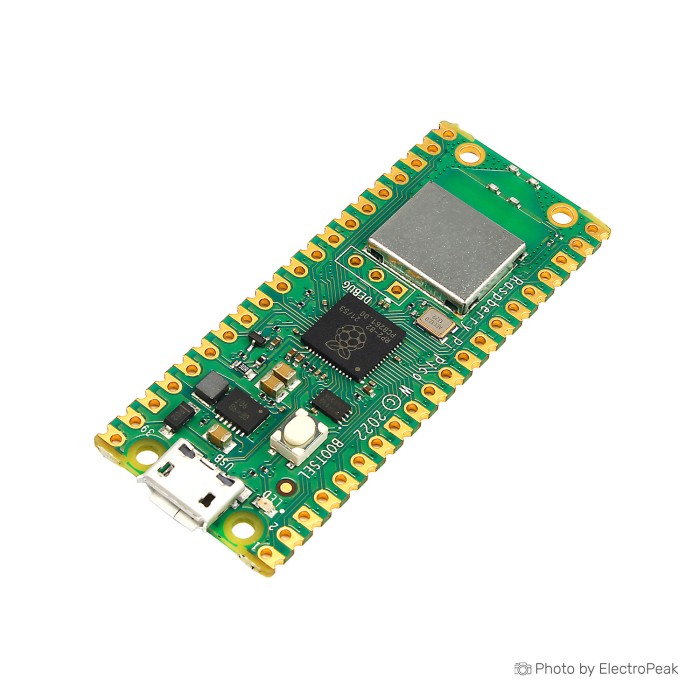

The Raspberry Pi Pico W is a microcontroller board from the Raspberry Pi Pico series with wireless connectivity. It includes a 2.4GHz wireless internet connection and is based on the RP2040 chip. The board supports programming through the built-in Micro USB B port and can also be powered through the same port. It provides 40 pin connections and 26 multifunctional GPIO pins for flexible hardware integration. The Pico W also includes a 3-pin ARM SWD debug port and supports C and MicroPython.

This board is designed for electronics and robotics projects that need a compact microcontroller platform with wireless support. It combines onboard flash memory, GPIO access, and multiple digital and analog capabilities in a single module. The Raspberry Pi Pico W is suitable for users who need a flexible development board with documentation and software samples.

Features of Raspberry Pi Pico W Microcontroller Board - 2.4GHz, 2MB Flash

• 2.4GHz wireless connection
• RP2040-based board
• Micro USB B programming port
• 40 pin connection
• 26 multifunctional GPIO pins
• 3-pin ARM SWD debug port
• C and MicroPython support

Specifications of Raspberry Pi Pico W Microcontroller Board - 2.4GHz, 2MB Flash

• RP2040 Microcontroller with 2 MB flash memory
• Un-board single-band 2,4 GHz wireless interfaces (802.11n)
• Micro USB B port for power and data (and for reprogramming the flash)
• 40 pin 21mmx 51mm 'dip' style 1mm thick PCB with 0,1" through pin holes also with castellated edge
• 26 Multifunction 3.3V General Purpose I/O (GPIO)
• 23 GPIO are digital only, with three also ADC capable
• Can be surface mounted as a module
• 3-pin ARM serial wire debug (SWD) port
• Simple yet highly flexible power architecture
• Various options to easily power the device from micro USB, batteries or external
• High quality, low cost, high availability
• Comprehensive SDK, software samples and documentation
• Dual-core cortex M0+ up to 133 MHz
• On-Chip PLL Allows Variable Core Frequency
• 264kbyte multi-bank high performance SRAM
• External quad-spi flash with eXecute in place (XIP) and 16Kbyte on-chip cache
• High-quality full-crossbar bus
• Un-board USB1.1 (device or host)
• 30 multi-function general I/O (four can be used for ADC)
• 1.8-3.3VI/O voltage
• 12-bit 500KSPS Analog to Digital Converter (ADC)
• Various digital peripherals
• 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM channels
• 1 × timer with 4 alarms, 1 × real-time clock
• 2 × programmable I/O (PIO) blocks, 8 state machines in total
• Flexible, user-programmable high-speed I/O
• Can emulate interfaces such as SD card and VGA

How to Use Raspberry Pi Pico W Microcontroller Board - 2.4GHz, 2MB Flash

1. Connect power and data through the Micro USB B port.
2. Program the board using C or MicroPython.
3. Use the GPIO pins, debug port, and wireless interface in your project.

More Info

• The board can be surface mounted as a module.
• The PCB uses a 0,1" through pin hole layout with a castellated edge.
• The RP2040 supports programmable I/O blocks and multiple digital peripherals.
