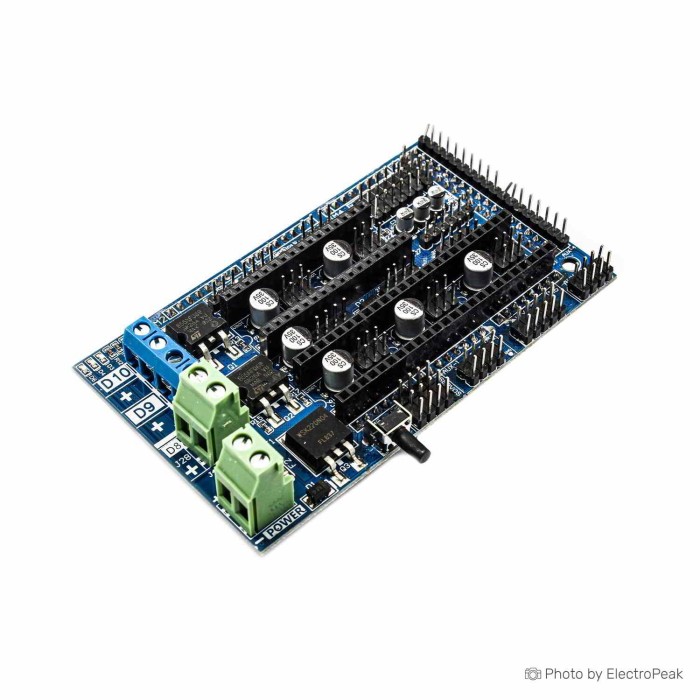

RepRap Ramps 1.6 3D Printer Controller Board
$4.2500
In stock
SKU
3DP-01-096
Volume discounts:
- +25 4 % $4.0900
- +100 6 % $4.0000
- +300 8 % $3.9200
- +500 10 % $3.8400
- +1000 12 % $3.7600
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
MKS-LV8729 3D Printer Stepper Motor Driver
Previous
Description
The RAMPS 1.6 is the second RAMPS iteration released by BIQU/BIGTREETECH. It replaces the original green power connector with a pair of screw terminals, adds a larger heatsink over the MOSFETS, and has a larger bed MOSFET. It maintains the surface-mounted fuses and flush MOSFETS of the RAMPS 1.5.
The positions of the D1 and D2 diodes have been swapped from the positions in RAMPS 1.4, the D1 diode is now the diode closest to fuse F2. The same is true for RAMPS 1.5.
The Power of Ramps 1.6 is larger than Ramps 1.5, the largest power will be up to or 270W, and Ramps 1.5 just can be up to 200W, or smaller than 200W Support motor drivers, support A4988 and DRV8825 and other motor drivers.
Features
Support:Â A4988 DRV8825 and other motor drivers
Support LCD:Â 12864 LCD/2004 LCD/ TFT3.5
Input voltage:Â 12V
Power:Â 270W
Patch MOS tube:Â B55NF06
Size:Â 101.5mm x 60.5mm
