DWM3000 UWB Transceiver Module
$20.7500
In stock
SKU
SEN-15-022
Volume discounts:
- +25 4 % $19.9300
- +50 6 % $19.5100
- +100 8 % $19.1000
- +300 10 % $18.6900
- +500 12 % $18.2800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

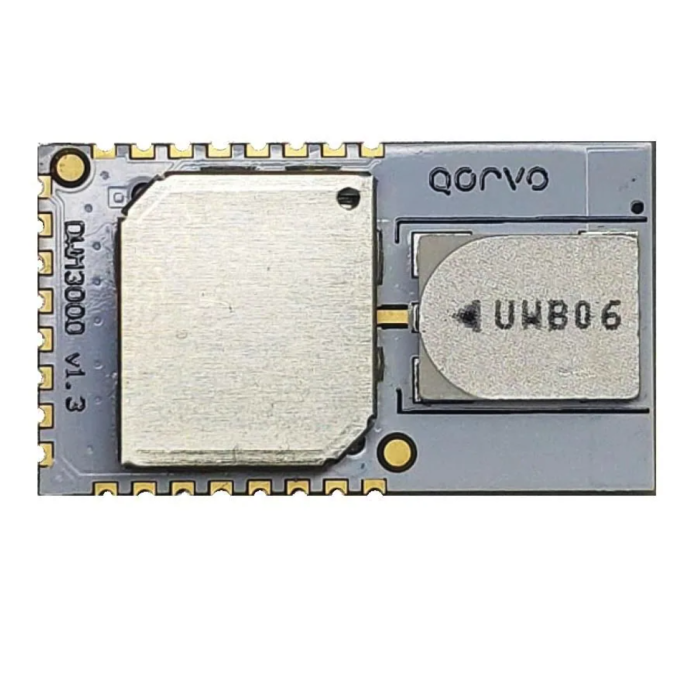

<p>The Qorvo® DWM3000 is a fully integrated Ultra-Wideband (UWB) transceiver module based on the Qorvo® DW3110 IC. It integrates a ceramic UWB antenna, all RF circuitry, power management, and clock circuitry in a single module to simplify integration and development. This module can be used in 2-way ranging or TDoA (Time Difference of Arrival) location systems to locate assets with a precision of 10 cm, supporting data rates of up to 6.8 Mbps. Additionally, it is designed with an Arduino Uno Shield form factor compatibility for easy connection.</p>
<h2>Features of Qorvo DWM3000 UWB Transceiver Module</h2>
<ul>
<li>Compatible with Arduino Uno Shield form factor</li>
<li>Interoperable with Apple U1 & U2 chips</li>
<li>Fully aligned with FiRa™ PHY, MAC and certification development</li>
<li>Incorporates the DWM3000 module containing DW3110 UWB IC and ceramic UWB antenna</li>
<li>On-board 3V3 DC-DC converter</li>
<li>On-board jumper allowing selection of the power supply and current consumption measurements</li>
<li>All module pins accessible via Arduino connectors</li>
<li>Fully coherent receiver for maximum range and accuracy</li>
<li>Programmable transmitter output power</li>
<li>Low power consumption</li>
</ul>
<h2>Specifications of Qorvo DWM3000 UWB Transceiver Module</h2>
<ul>
<li>Transceiver IC: Qorvo® DW3110 IC</li>
<li>Supported UWB Channels: Channel 5 (6.5 GHz) and Channel 9 (8 GHz)</li>
<li>Data Rates: 850 kbps and 6.8 Mbps</li>
<li>Locating Precision: 10 cm (via TDoA or 2-way ranging)</li>
<li>On-board Power Supply: 3V3 DC-DC</li>
</ul>
| Platform | Arduino Uno |
|---|---|
| Interface Type | SPI |
| Operating Voltage (V) | 3.3V |
| Mounting Type | Plug-in shield |
| Antenna Connector | Internal |
| Position Accuracy (m CEP) | 10 cm |
| Channels | 2-channel |
| Positioning | TDOA, 2-way ranging |
| Antenna Type | Internal Antenna |
| Power Mode | Configurable power management |
| Chipset | Qorvo DW3110 IC |
