Q300 Barcode Reader Module
SAVE
As low as $63.5000
In stock
Only %1 left
SKU
MOD-05-009
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GM803 Barcode Reader Module Previous

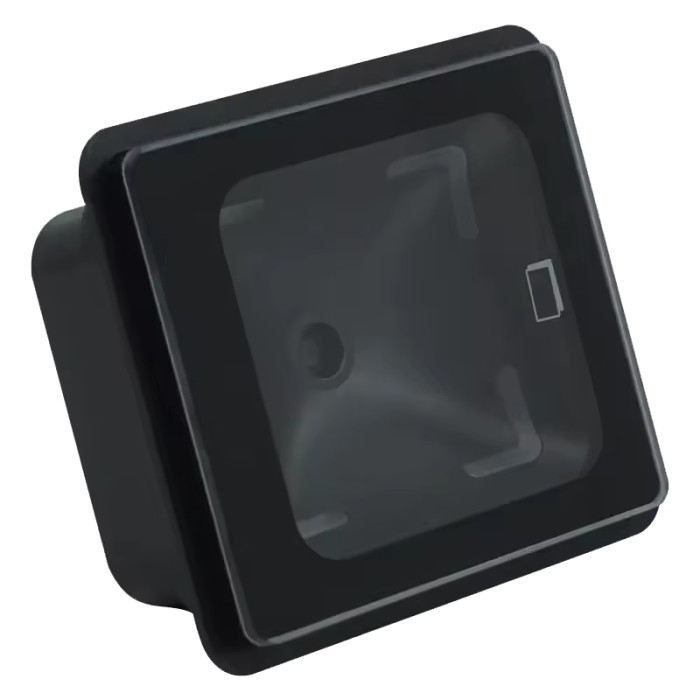

The Q300 Barcode Reader Module is a versatile scanning solution designed for reading 1D and 2D barcodes with high accuracy. Equipped with an image-based decoding engine and a wide field of view, it supports various interfaces like RS232, TTL, USB, and more, making it adaptable to diverse systems. It features automatic scanning, compatibility with multiple operating systems, and RFID support for enhanced functionality.
Specifications of Q300 Barcode Reader Module
-
Working Voltage: DC 5V-24V
-
Working Current: 280mA
-
Reading Distance: 0mm ~ 62.4mm (QR Code 15mil)
-
Scan Speed: 100ms per scan
-
Image Sensor: 640 x 480 CMOS
-
FOV: Diagonal 72°, Horizontal 56°, Perpendicular 84°
-
Recognition Accuracy: ≥8mil
-
Compatible Systems: Windows XP/7/8/9, Android, Linux, Mac
-
Material: PC+ABS
-
Dimensions: 75 x 65 x 28.35mm
-
Weight: 30g
-
Power Consumption: 0.75W
-
Light Source: LED (white light)
-
Applied Environment: Temperature: -20°C to 70°C, Humidity: 5%-95%
Datasheet of Q300 Barcode Reader Module
Datasheet: Not available
| Interface Type | USB, UART, RS232 |
|---|---|
| Operating Voltage (V) | 5V-24V |
| Operating Current (mA) | 280mA |
| Operating Temp (°C) | -20°C to 70°C |
| Dimensions (mm) | 75 x 65 x 28.35mm |
| Output Type | Digital |
| Accuracy | ≥8mil |
| Wavelength Range | 400-700nm |
| Pixel Resolution | VGA (640x480) |
| Field of view angle (degrees) | Diagonal 72°, Horizontal 56°, Perpendicular 84° |
| Weight (g) | 30g |
| Qty | 1 |
| Sensor Type | CMOS |
| Output Interface | Digital |
| Power Consumption | 0.75W |
| Material | PC+ABS |
