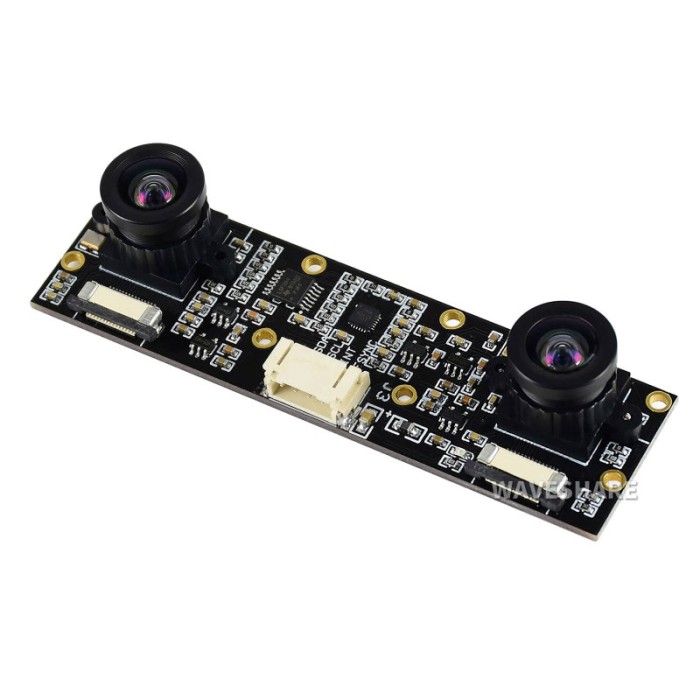

Dual IMX219 Binocular Camera Module

The Dual IMX219 Binocular Camera Module is a high-quality and versatile camera module for your projects. With its dual IMX219 sensors, this module captures images with high resolution and clarity, providing a stereo vision effect. It has a compact and lightweight design, making it a perfect fit for various applications such as robotics, drones, and more.

Equipped with reliable and high-quality sensors, the Dual IMX219 Binocular Camera Module offers clear and synchronized images for your projects. It also has a flexible connection interface and supports multiple image formats, providing flexibility for your designs. With its affordable price and practical functionality, this module is a top choice for any camera enthusiast. Upgrade to the Dual IMX219 Binocular Camera Module and capture stunning stereo images for your projects.

Features of Dual IMX219 Binocular Camera Module:

• Adopts IMX219 chip, onboard dual 8Megapixels cameras

• Suitable for AI vision applications like depth vision and stereo vision

• Supports Raspberry Pi 5 and Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc

• Supports Jetson Nano, Jetson Xavier NX, Jetson Orin NX, and Jetson Orin Nano, etc.

Specifications of Dual IMX219 Binocular Camera Module:

• PIXELS:8 Megapixels

• SENSOR: IMX219

• CAMERAS

  • CMOS size: 1/4inch

  • APERTURE (F): 2.4

  • Resolution: 3280 × 2464 (per camera)

  • Focal Length: 2.6mm

  • FIELD OF VIEW: 83°(D) 73°(H) 50°(V)

  • DISTORTION: < 1%

  • Baseline Length: 60mm

• ICM20948:

  • Accelerometer:

    • Resolution: 16-bit

    • Measuring Range (configurable): ±2, ±4, ±8, ±16g

    • Operating Current: 68.9uA

  • Gyroscope:

    • Resolution: 16-bit

    • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec

    • Operating Current: 1.23mA

  • Magnetometer

    • Resolution: 16-bit

    • Measuring Range: ±4900μT

    • Operating Current: 90uA

• DIMENSIONS: 24 × 85mm

• APPLICATIONS: AI vision applications like depth vision and stereo vision
