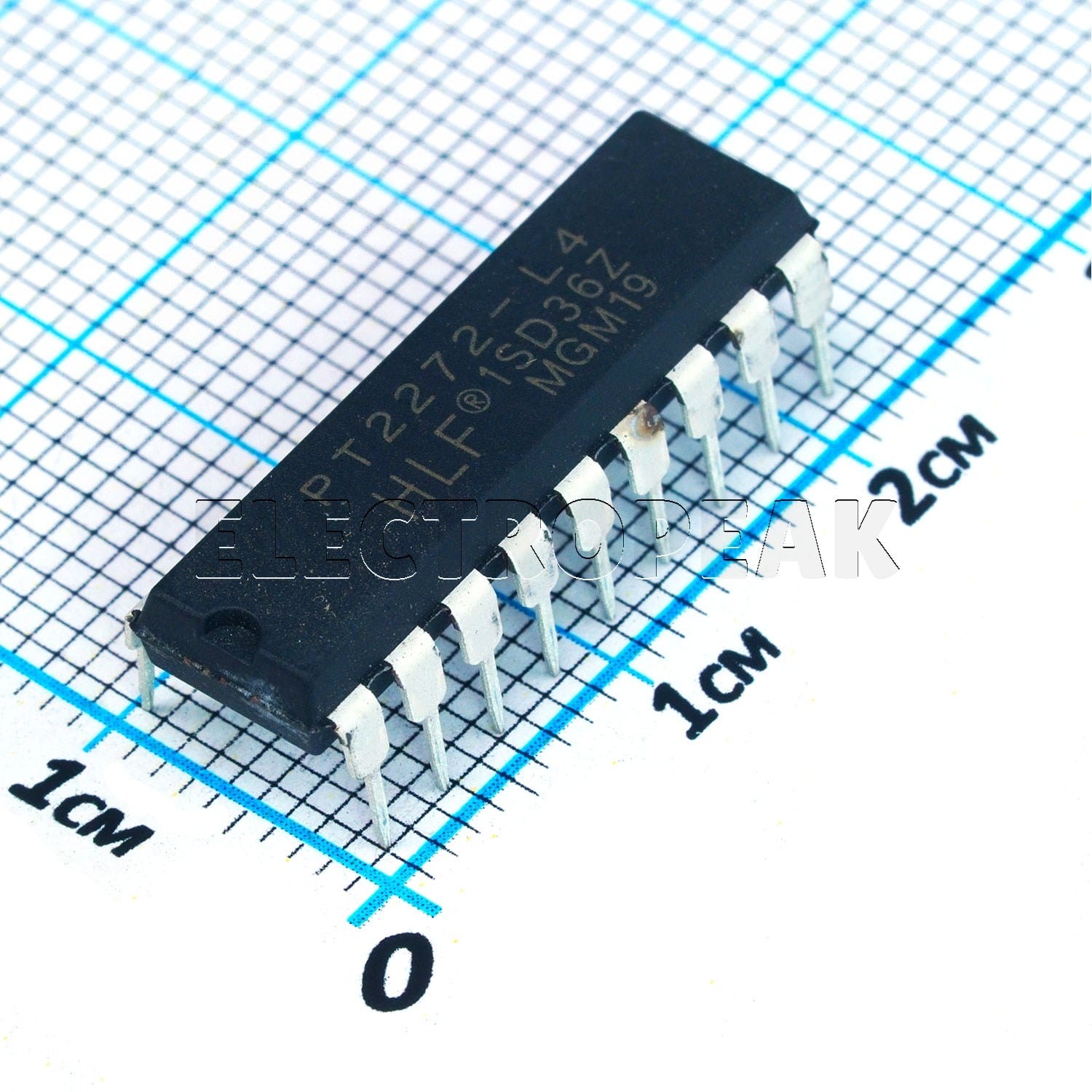

PT2272-L4, Decoder IC, DIP-18
$0.1800
In stock
SKU
S1-0092
Volume discounts:
- +100 6 % $0.1700
- +5000 11 % $0.1600
PT2272-L4, Decoder IC, DIP-18 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PT2262, Encoder IC, DIP-18 Previous
PT2272-L4 Decoder IC is a CMOS radio decoder for remote control systems. It comes in a DIP-18 package and is identified as a 4-byte radio decoder. The PT2272-L4 is specified with a 400 MHz carrier frequency and 12-bit maximum data length. Its operating voltage range is 4 to 15V DC, and current consumption is 5 mA. The device is rated for operation from -20°C to +70°C and storage from -40°C to +85°C.
Features of PT2272-L4 Decoder IC
- CMOS construction
- 4-byte radio decoder
- DIP-18 package
- Remote control decoder function
- 400 MHz carrier frequency
Specifications of PT2272-L4 Decoder IC
- Operating Voltage: 4 to 15V DC
- Carrier Frequency: 400 MHz
- Current Consumption: 5 mA
- Maximum Data Length: 12 bits
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Package: DIP-18
How to Use PT2272-L4 Decoder IC
- Install the IC in a DIP-18 circuit layout.
- Apply power within the 4 to 15V DC operating range.
- Use it as a decoder in a remote control system.
More Info
- PT2272-L4 is a radio decoder IC.
- The device is offered in a DIP-18 package.
| Package | DIP-18 |
|---|---|
| Packaging | Tube |
| Mounting Type | Through Hole |
| Components - Type | Encoders, Decoders, Multiplexers & Demultiplexers |
