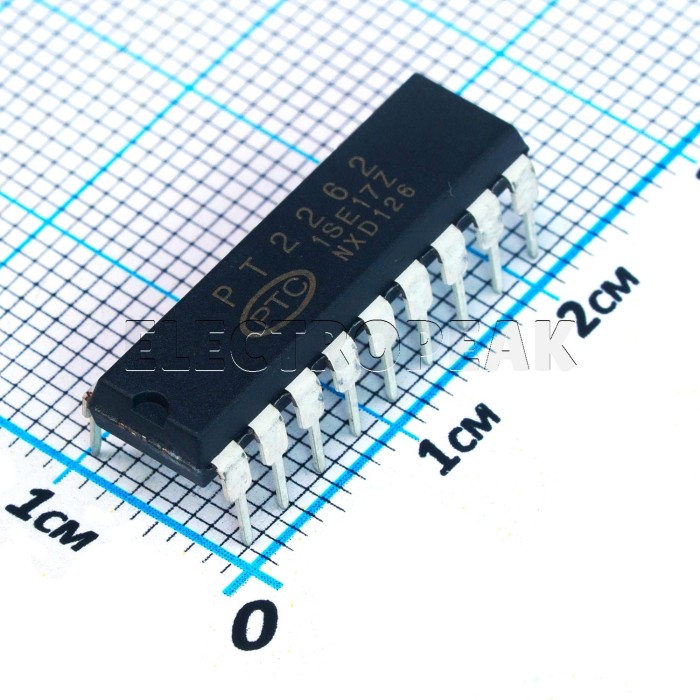

PT2262, Encoder IC, DIP-18
$0.1600
In stock
SKU
S1-0091
Volume discounts:
- +100 6 % $0.1500
- +5000 13 % $0.1400
PT2262, Encoder IC, DIP-18 is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PT2262 Encoder IC is a 4-byte radio encoder in a DIP-18 package. It is a CMOS device used as an encoder in remote control systems. The PT2262 supports radio encoding with a 400 MHz carrier frequency. It is specified with an operating voltage range of 3 to 12V DC. The device is designed with a 12-bit maximum data length and a current consumption of 5 mA. Its specified output power is 360 mW.
Features of PT2262 Encoder IC - DIP-18, 3 To 12V DC
- 4-byte radio encoding
- CMOS construction
- DIP-18 package
- Remote control encoder
- 400 MHz carrier frequency
Specifications of PT2262 Encoder IC - DIP-18, 3 To 12V DC
- Operating Voltage: 3 to 12V DC
- Carrier Frequency: 400 MHz
- Output Power: 360 mW
- Current Consumption: 5 mA
- Maximum Data Length: 12 bits
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Package: DIP-18
How to Use PT2262 Encoder IC - DIP-18, 3 To 12V DC
- Place the PT2262 Encoder IC in the circuit.
- Apply an operating voltage of 3 to 12V DC.
- Use it as an encoder in the remote control system.
More Info
- Available in a DIP-18 package.
- Built as a CMOS device.
| Package | DIP-18 |
|---|---|
| Packaging | Tube |
| Function | Encoder |
| Number of Bits | 12 bit |
| Mounting Type | Through Hole |
| Components - Type | Encoders, Decoders, Multiplexers & Demultiplexers |
