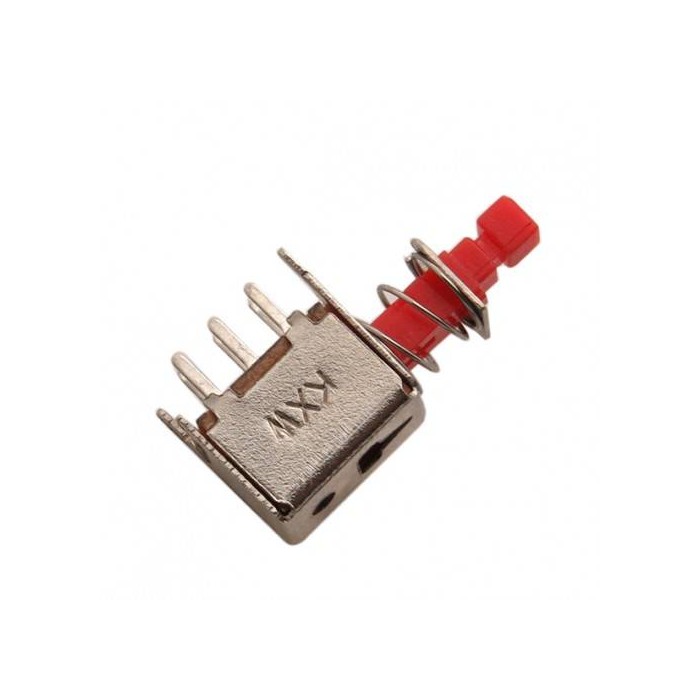

PS-22F02 Direct Key Switch
$0.0510
In stock
SKU
ELC-14-032
Volume discounts:
- +100 4 % $0.0490
- +500 6 % $0.0480
- +1000 10 % $0.0460
- +5000 12 % $0.0450
- +10000 14 % $0.0440
PS-22F02 Direct Key Switch is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MTS-102-F1 Toggle Switch Previous
The PS-22F02 Direct Key Switch is a direct push-lock switch for electrical circuit control. It features a locking mechanism that keeps the switch in the pressed state until it is released. This switch is designed with 6 pins and is intended for use in electronic devices and projects. The PS-22F02 Direct Key Switch includes electrical and mechanical specifications that define its operating limits and performance.
Features of PS-22F02 Direct Key Switch
- Direct push-lock operation
- 6-pin design
- Locking mechanism
- Rated load: DC 30V 1A
- Low contact resistance
- High insulation resistance
- Wide operating temperature range
Specifications of PS-22F02 Direct Key Switch
- Model: PS-22F02
- Operating Voltage: Maximum 250V DC
- Contact Resistance: Less than 20 ohms
- Insulation Resistance: More than 500 mega ohms
- Voltage Withstand: 800V AC
- Operating Force: 2 to 8 Newtons
- Lifespan: More than 10,000 presses
- Current Rating: 1 Amp at 30V DC
- Operating Temperature: -25 to +55 °C
- Number of Pins: 6 pins
How to Use PS-22F02 Direct Key Switch
- Install the switch in the required panel or circuit position.
- Connect the 6 pins according to the circuit design.
- Press the switch to activate the locking state.
- Press again to release the switch.
More Info
- Suitable for electrical circuit switching.
- Used in electronic devices and projects.
| Operating Voltage (V) | 250V DC (Max) |
|---|---|
| Operating Temp (°C) | -25 to +55 |
| Mounting Type | THT |
| Channel Count | 2 |
| Switching Capacity | 1 Amp at 30V DC |
| Load Current (A) | 1 |
| Chipset | PS-22F02 |
| Display Type | None |
| Material | Metal + Plastic |
| Input Type (AC/DC) | DC |
