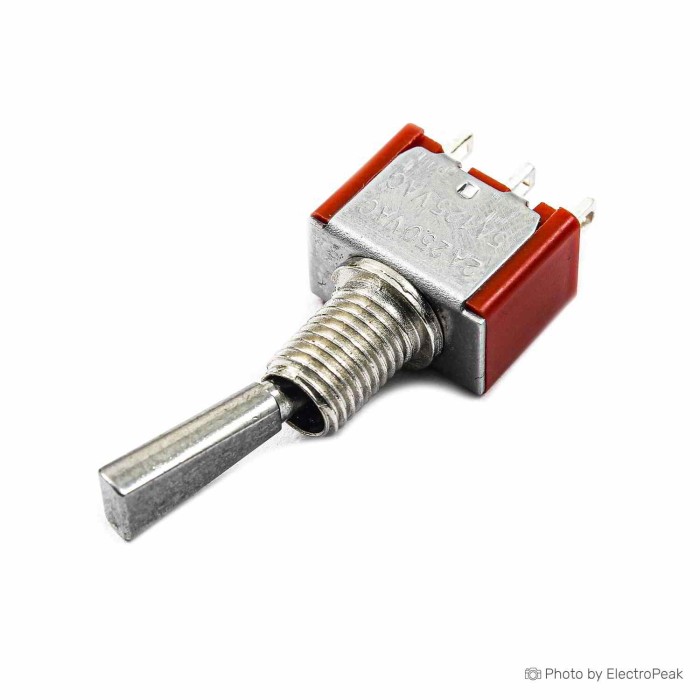

MTS-102-F1 Toggle Switch

The MTS-102-F1 Toggle Switch is a 3-position electrical switch with an ON-OFF-ON configuration and 3 pins. It is used to control the opening and closing of an electrical circuit. This toggle switch is suitable for applications that require user-operated switching and circuit control. It combines a compact form with clearly defined switching positions. The MTS-102-F1 Toggle Switch is built for standard switching tasks in electronics and control systems.

Features of MTS-102-F1 Toggle Switch

• ON-OFF-ON operation
• 3-pin design
• Maximum current 3 amps
• Up to 250 volts DC
• Electrical life over 10,000 cycles
• Mechanical life over 50,000 cycles
• Insulation resistance over 500VDC 1000MΩ minute
• Contact resistance 20 mega ohm
• Operating temperature -25 to 85 degrees Celsius

Specifications of MTS-102-F1 Toggle Switch

• Model: MTS-102-F1
• Switch type: Toggle switch
• Positions: ON-OFF-ON
• Pins: 3
• Size: 13x8 mm
• Weight: 0.00548 kg
• Maximum current: 3 amps
• Voltage: up to 250 volts DC
• Electrical life: more than 10000 cycles
• Mechanical life: more than 50000 cycles
• Insulation resistance: more than 500VDC 1000MΩ Minute
• Contact resistance: 20 mega ohm
• Operating temperature: -25 to +85 degrees Celsius

How to Use MTS-102-F1 Toggle Switch

1. Connect the switch pins to the circuit.
2. Move the lever to select the required position.
3. Use the switch to open or close the circuit as needed.

More Info

• Suitable for user-controlled circuit switching.
• Compact switch format for electronics applications.
