DC-DC Step-Down Buck Power Module - 8-28V to 3.3V, 3A
$2.2600
In stock
SKU
BAT-02-071
Volume discounts:
- +50 4 % $2.1600
- +100 7 % $2.1100
- +300 9 % $2.0600
- +500 11 % $2.0100
- +1000 13 % $1.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM317 DC-DC Adjustable Step Down Regulator Module - Buck Converter Previous

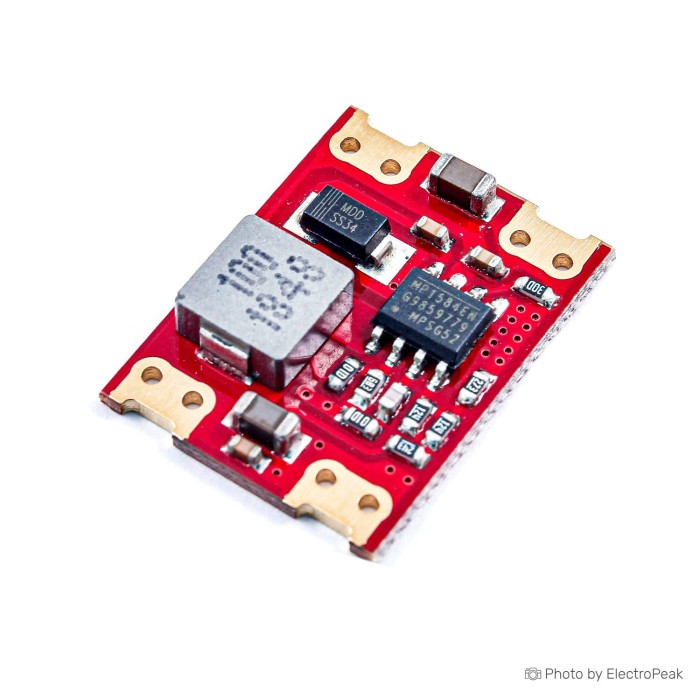

MP1584 DC-DC Buck Converter Module is a step-down power module that converts an input voltage to a fixed 3.3V output. It is designed for compact electronics and robotics projects where regulated DC power is needed. The module supports a maximum output current of 3A. It operates with low no-load current and is built for stable conversion in a small form factor. Use the MP1584 DC-DC Buck Converter Module when a fixed 3.3V supply is required from a higher DC input.
Features of MP1584 DC-DC Buck Converter Module - 5.5-28V to 3.3V, 3A
- Step-down DC-DC conversion
- Fixed 3.3V output
- Up to 3A output current
- MP1584-based design
- Low no-load current
Specifications of MP1584 DC-DC Buck Converter Module - 5.5-28V to 3.3V, 3A
- Model: Buck Converter Module
- Main chip: MP1584
- Input voltage: 5.5 to 28V DC
- Output voltage: 3.3V (±2%)
- Output current: Maximum 3A
- No-load current: 0.5mA
- Working frequency: 0.5MHz
- Lifespan: 30,000 hours
- Dimensions: 16.5 × 22mm
- Working temperature: -20 to +85°C
- Permissible humidity: 20 to 90%
How to Use MP1584 DC-DC Buck Converter Module - 5.5-28V to 3.3V, 3A
- Connect the DC input within the specified voltage range.
- Use the regulated 3.3V output for the target circuit.
More Info
- Compact size for electronics and robotics projects.
- Suitable for regulated DC power conversion applications.
