PL2303TA USB to TTL Serial Cable
$1.0500
In stock
SKU
COM-05-038
Volume discounts:
- +50 5 % $1.0000
- +100 7 % $0.9800
- +300 9 % $0.9600
- +500 11 % $0.9300
- +1000 13 % $0.9100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Mini USB Female to Micro USB Male Adapter (Left Angle, 90 Degree) Previous

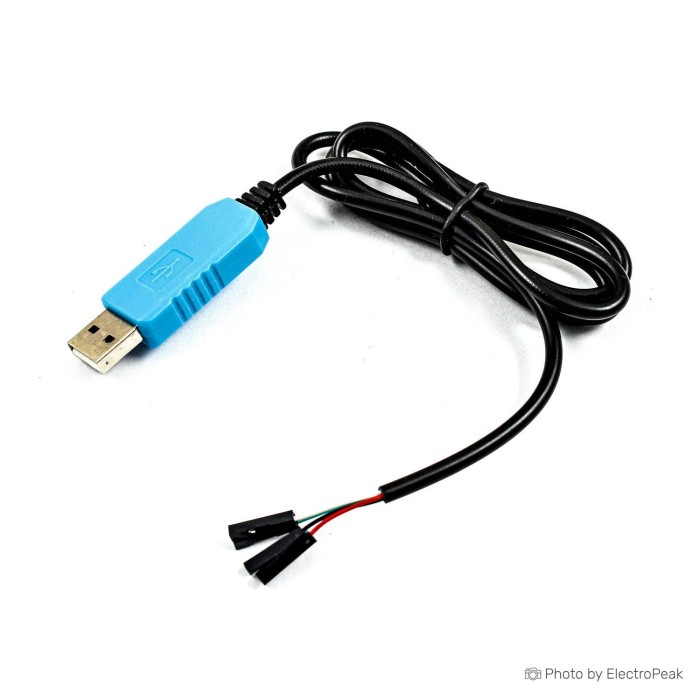

PL2303TA USB to TTL Serial Cable is a cable adapter for serial communication with microcontrollers and other TTL-level serial devices. It uses the PL2303TA chip in the USB plug and provides a simple USB to serial conversion path. The cable includes four output wires for direct connection to device pins. It is compatible with Windows XP, VISTA, 7, 8, 8.1, and 10. The cable length is about 1 meter.
Features of PL2303TA USB To TTL Serial Cable - 1m
- USB to TTL serial conversion
- PL2303TA chip
- Four-wire output
- Windows compatibility
- About 1 meter cable length
Specifications of PL2303TA USB To TTL Serial Cable - 1m
- Serial communication standard: RS232
- Red wire: +5 V
- Black wire: GND
- White wire: RXD
- Green wire: TXD
- Board power: 5V @ 500mA via USB
- Logic level: 3.3 volts and zero
- Cable length: about 1 meter
- Operating voltage: 4V to 5.25V
- Baud rate: 70 bps to 12 Mbps
- Output interfaces: TXD, RXD, GND, 5V
- Shape: Cable Adapter
- Operating system compatibility: Windows XP/VISTA/7/8/8.1/10
How to Use PL2303TA USB To TTL Serial Cable - 1m
- Connect the USB plug to your computer.
- Connect the output wires to the target device pins.
- Set the required baud rate for communication.
More Info
- Not recommended for Arduino boards.
- FTDI-based cables are recommended for Arduino use.
| Platform | Raspberry Pi |
|---|---|
| Interface Type | USB, UART |
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 500mA |
| Connector | USB |
| Channels | 1-channel |
| Voltage Levels | 3.3V |
| Chipset | PL2303TA |
| Application | Serial Communication |
