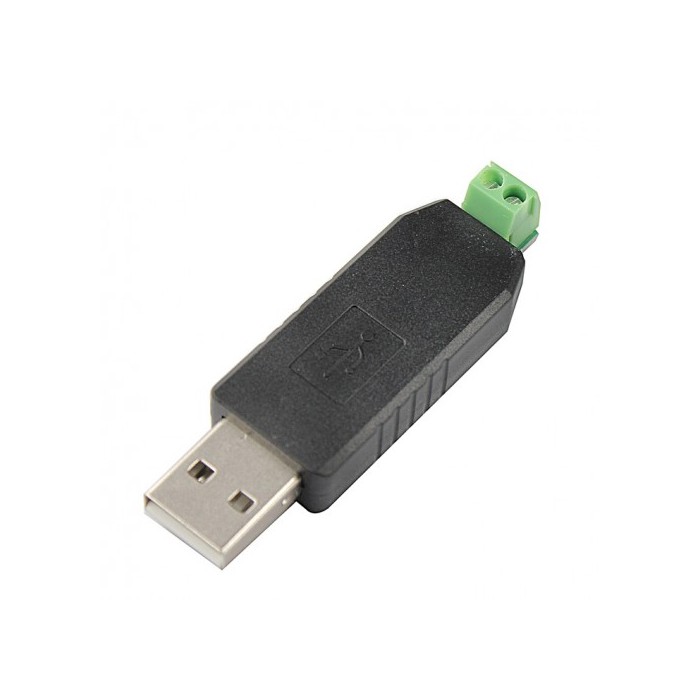

USB to RS485 Converter (CH340G Chip)
$0.8400
In stock
SKU
COM-05-035
Volume discounts:
- +50 5 % $0.8000
- +100 6 % $0.7900
- +300 8 % $0.7700
- +500 11 % $0.7500
- +1000 13 % $0.7300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PL2303TA USB to TTL Serial Cable Previous
The CH340G USB To RS485 Converter Module provides a USB to RS485 interface for serial data conversion. It is designed for RS485 communication and includes USB 2.0 connectivity. The module supports baud rates from 75bps to 115200bps, with a maximum speed of 6Mbps. It supports Windows (98 to 11), Linux, and Mac, and it can connect up to 32 devices on one RS485 bus. Its compact size makes it suitable for a wide range of electronics and automation setups.
This USB to RS485 Converter Module is based on the CH340G chip. It offers RS485 serial communication with half duplex operation. The product is supplied through the USB port and does not require an external power supply. It is intended for use where USB-to-RS485 conversion is needed for data transfer and communication.
Features of CH340G USB To RS485 Converter Module - USB 2.0, 6Mbps
- CH340G chip
- USB 2.0 interface
- RS485 serial communication
- 75bps to 115200bps baud rate range
- Up to 6Mbps speed
- Windows, Linux, and Mac support
- Up to 32-device bus connection
- Compact size
Specifications of CH340G USB To RS485 Converter Module - USB 2.0, 6Mbps
- Serial standard: RS485
- Chip: CH340G
- USB version: USB 2.0
- Baud rate: 75bps to 115200bps
- Maximum speed: 6Mbps
- Supported operating systems: Windows (98 to 11), Linux, Mac
- Dimensions: 60x18x14 mm
- Connection capacity: Up to 32 devices on one bus
- Communication distance: 1200m (max)
- Work temperature range: -40°C ~ +85°C
- Color: Black
- Support System: WinCE5.0 drive
- Plug and play support
- Hot-swap support (USB side)
- Power supply: USB port
- Outputs: A (D+), B (D-)
- Communication type: Half duplex
How to Use CH340G USB To RS485 Converter Module - USB 2.0, 6Mbps
- Connect the module to the USB port.
- Wire the RS485 lines to A (D+) and B (D-).
- Use the supported operating system driver for communication.
More Info
- Suitable for RS485 communication conversion.
- USB-powered operation.
| Platform | Linux, Mac, Windows (98 to 11) |
|---|---|
| Interface Type | USB, RS485 |
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 60x18x14 mm |
| Connector | USB |
| Data transmission rate | 75bps to 115200bps, up to 6Mbps |
| Channels | 1-channel |
| Chipset | CH340G |
| Application | Industrial, Home |
